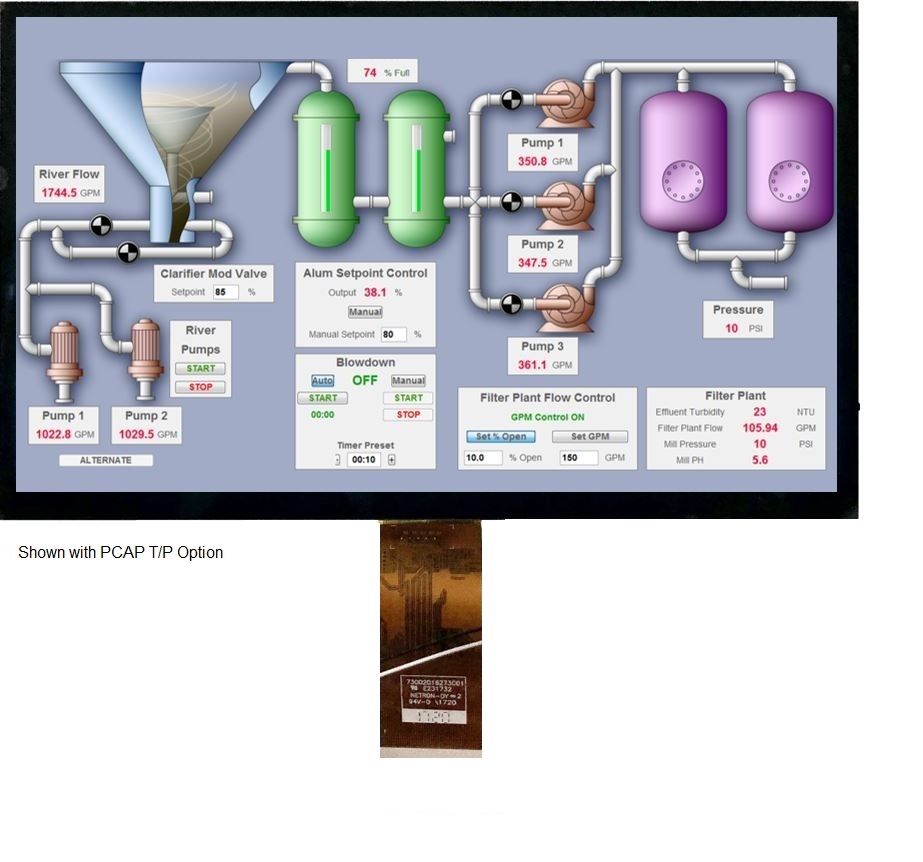

ATM1010L21 Digital TFT LCD Panel
Quicklinks:
ATM1010L21 Digital TFT LCD Panel Description
10.1" TFT LCD DisplayModule Specifications
Overall Module Size | 10.1" |
Resolution | 1024XR.G.B.X600 |
Brightness (Nits) | 410 |
Contrast | 600 |
Back Light | LED |
Viewing Angle | +70/-70 +70/-50 |
Weight | 265 g |
Operation Temperature (℃) | -20~+70 |
Storage Temperature (℃) | -30~+80 |
Interface | LVDS |
Active Area | 222.72X125.28 mm |
Outline Dimension | 235.00X143.00X4.7 mm |
Viewing Direction | 6 O'clock |
Bonding Type | COG |
Pixel Configuration | Stripe |
