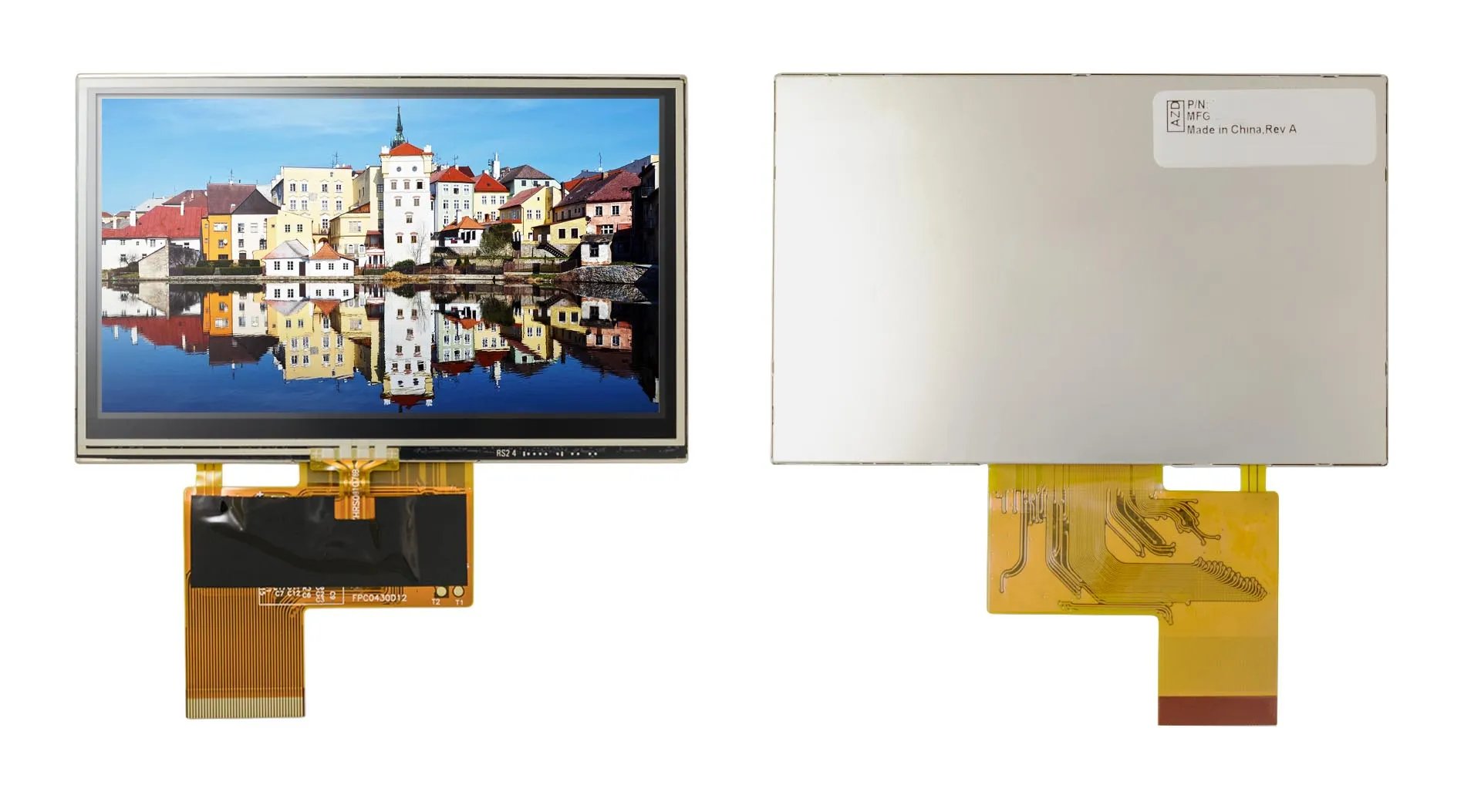

ATM0430D12B-T Product Page
Datasheet
View Part Drawing
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 4.3 |
| Resolution | 480 x 272 |
| Aspect Type | Wide |
| Touch | Resistive |
| Brightness (Nits) | 700 |
| Contrast | 500 |
| Backlight | - |
| Viewing Angle | +70/-70 +70/-50 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | Digital RGB |
| Active Area | 95.04X53.856 mm |
| Outline Dimension | 105.5X67.2X4.05mm |
| Viewing Direction | 12 O'clock |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
