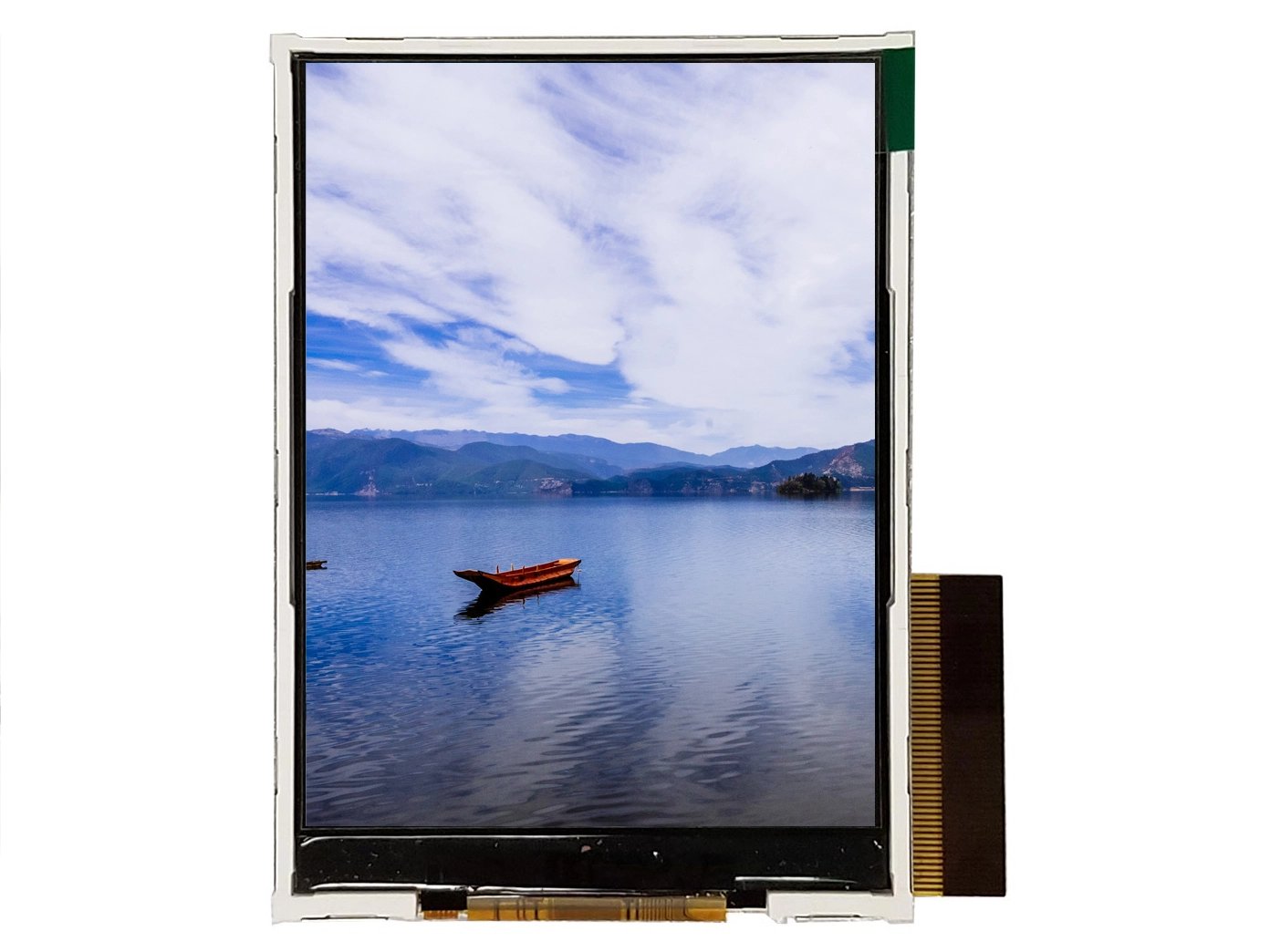

ATM0280B44C Digital TFT LCD Panels
Datasheet
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Overall Module Size | 2.8 |
| Resolution | 240XR.G.B.X320 |
| Brightness (Nits) | 240 |
| Contrast | 480 |
| Backlight | LED |
| Viewing Angle |
+45/-45 +50/-20 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | - |
| Interface | MCU |
| Active Area | 43.2X57.6 mm |
| Outline Dimension | 50.0X69.2 mm |
| Viewing Direction | TN |
| Bonding Type | - |
| Pixel Configuration | - |
