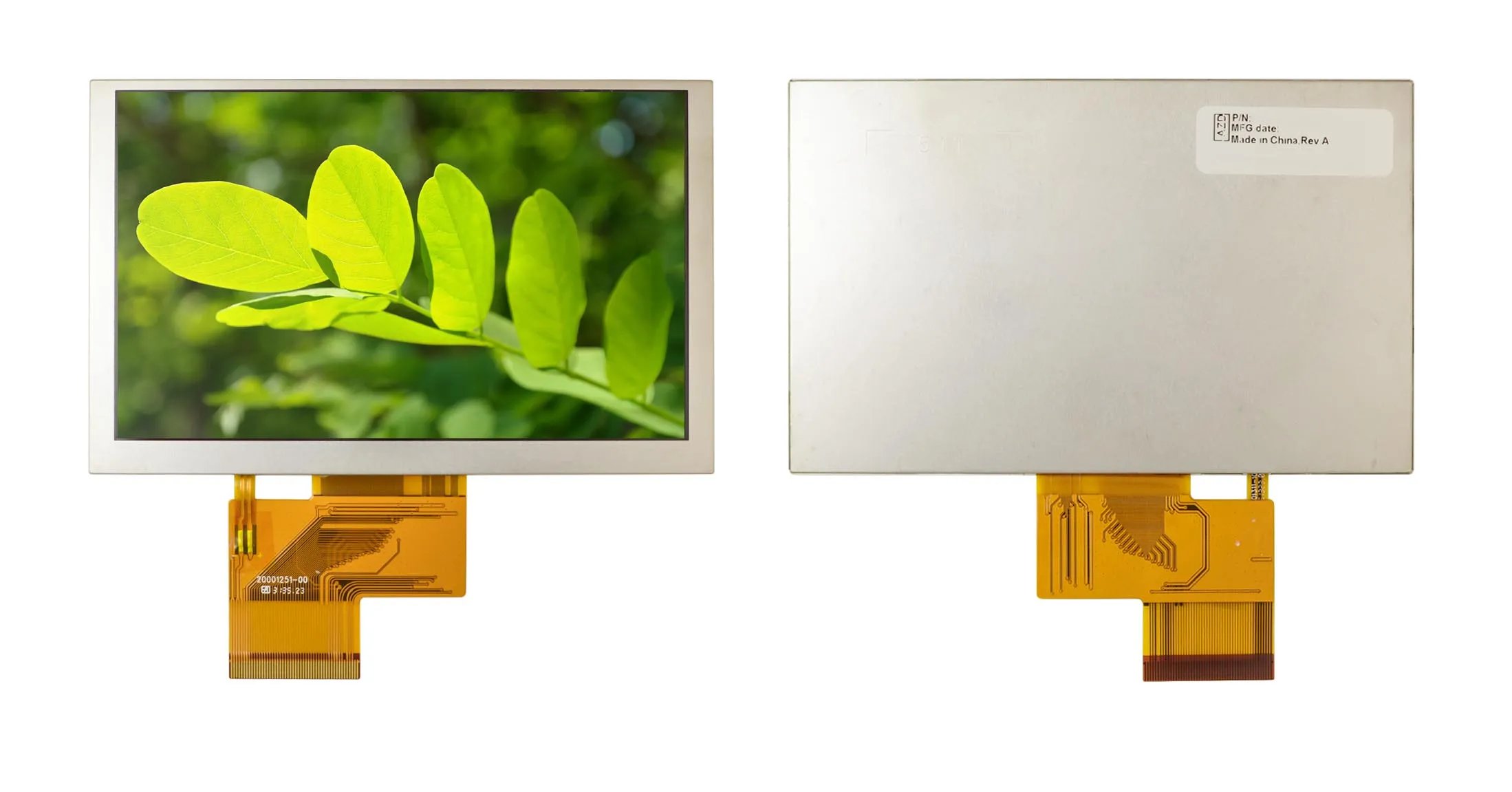

ATM0500D12 Product Page
Datasheet
View Part Drawing
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 5 |
| Resolution | 480 x 272 |
| Aspect Type | Wide |
| Touch | None |
| Brightness (Nits) | 350 |
| Contrast | 800 |
| Backlight | - |
| Viewing Angle | +70/-70 +70/-50 |
| Weight | - |
| Operation Temperature (℃) | -20~+60 |
| Storage Temperature (℃) | -30~+70 |
| Interface | Digital RGB |
| Active Area | 110.88X62.832mm |
| Outline Dimension | 120.7X75.8X3.10mm |
| Viewing Direction | 12 O'clock |
| Bonding Type | - |
| Pixel Configuration | Stripe |
