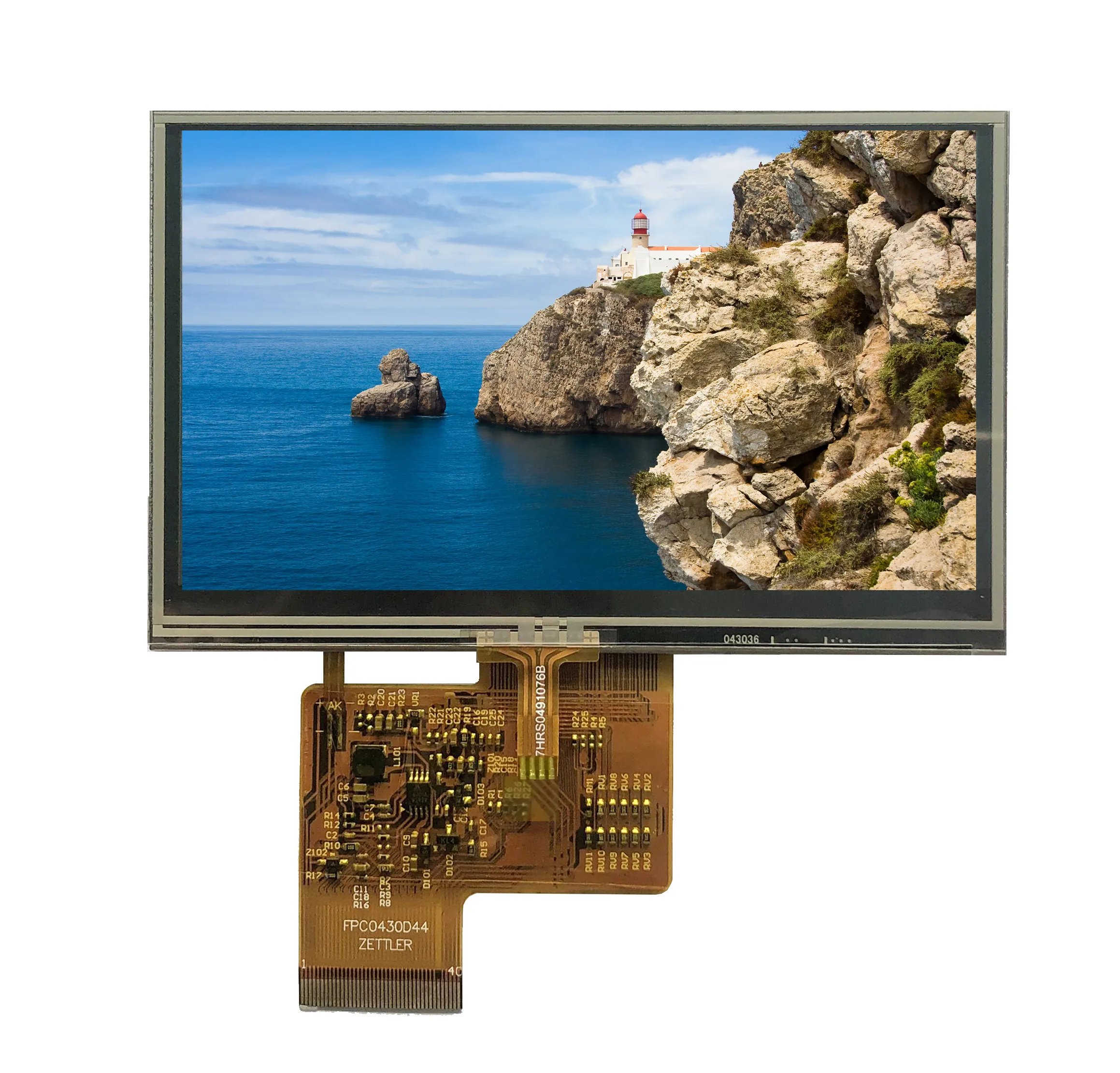

ATM0430D52-T Product Page
Resources
Datasheet
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 4.3 |
| Resolution | 480 X 272 |
| Brightness (Nits) | 400 |
| Contrast | - |
| Backlight | LED |
| Viewing Angle | +80/-80 +80/-80 |
| Weight | 58g |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | RGB |
| Active Area | 95.04X53.856mm |
| Outline Dimension | 105.5X67.2X4.05mm |
| Viewing Direction | Free |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
