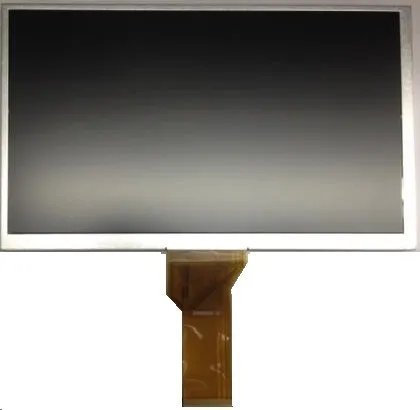

ATM0900D8 Product Page
Resources
Datasheet
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 9 |
| Resolution | 800 x 480 |
| Aspect Type | Wide |
| Touch | None |
| Brightness (Nits) | 300 |
| Contrast | - |
| Backlight | - |
| Viewing Angle | +70/-70 +70/-70 |
| Weight | |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | 24bit RGB interface |
| Active Area | 198X111.969mm |
| Outline Dimension | 211.1X128.4X4.4mm |
| Viewing Direction | Free |
| Bonding Type | |
| Pixel Configuration | Stripe |
