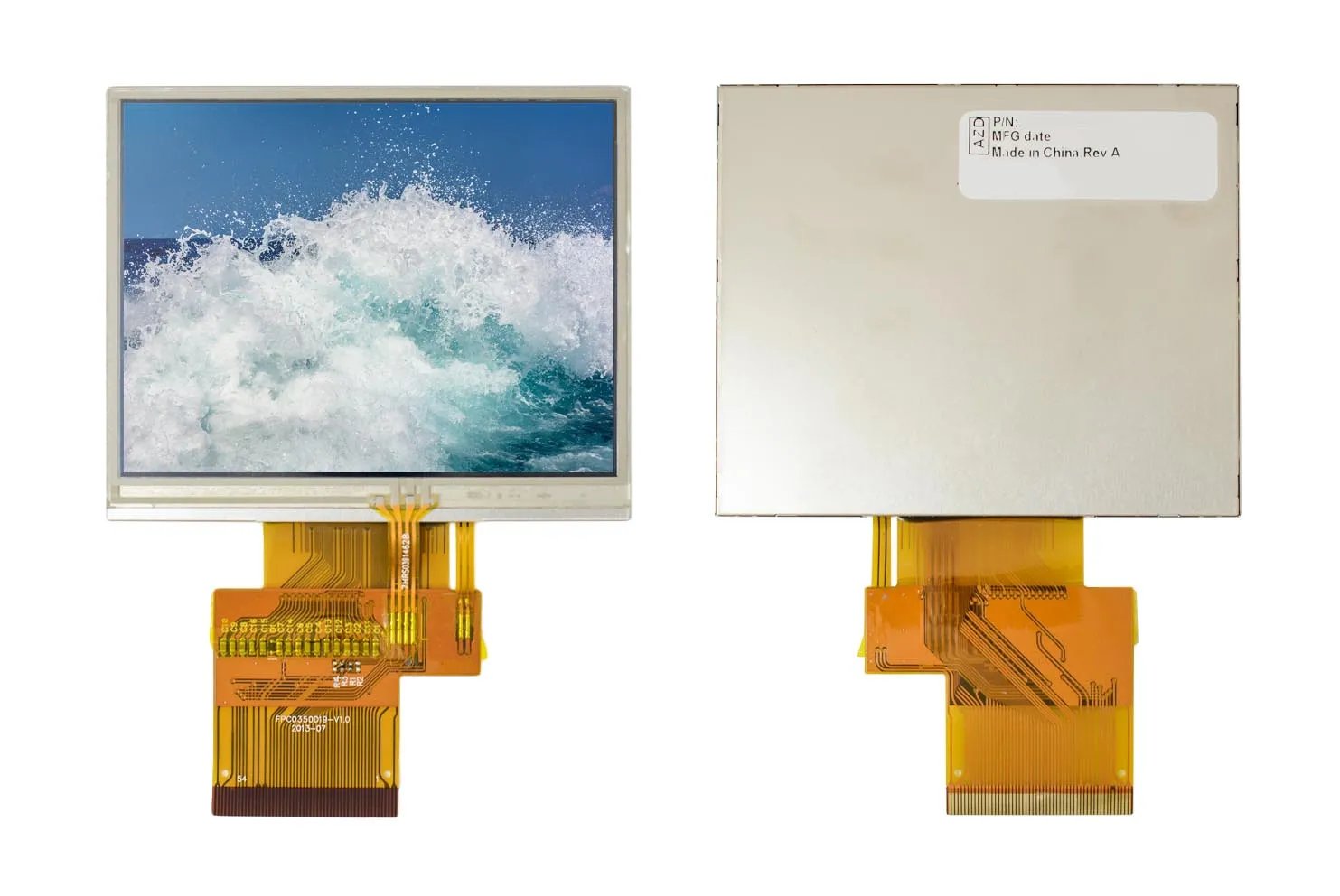

ATM0350D19A Product Page
Datasheet
3D CAD File (IGS)
View Part Drawing
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 3.5 |
| Resolution | 320 X 240 |
| Brightness (Nits) | 500 |
| Contrast | 450 |
| Backlight | LED |
| Viewing Angle | +80/-80 +80/-80 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | Digital RGB |
| Active Area | 70.08X52.56mm |
| Outline Dimension | 77.0X64.0X3.3mm |
| Viewing Direction | 6 O'clock |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
