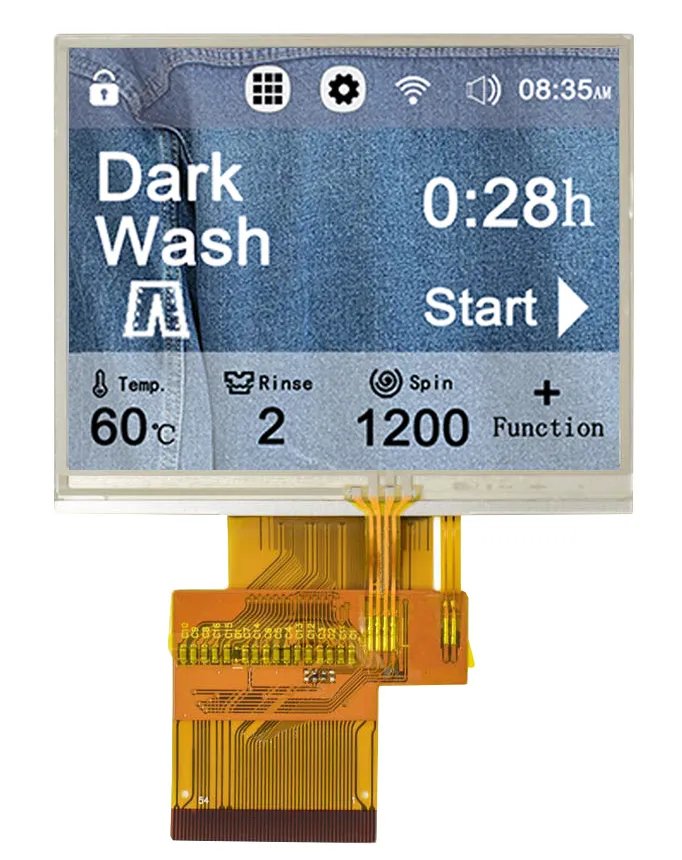

ATM0350D15 Product Page
Resources
Datasheet
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 3.5 |
| Resolution | 320 x 240 |
| Aspect Type | Wide |
| Touch | None |
| Brightness (Nits) | 500 |
| Contrast | 800 |
| Backlight | - |
| Viewing Angle | +80/-80 +80/-80 |
| Weight | |
| Operation Temperature (℃) | -20~70 |
| Storage Temperature (℃) | -20~70 |
| Interface | RGB |
| Active Area | 70.08X52.56mm |
| Outline Dimension | 76.90X63.90X3.30mm |
| Viewing Direction | Free |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
