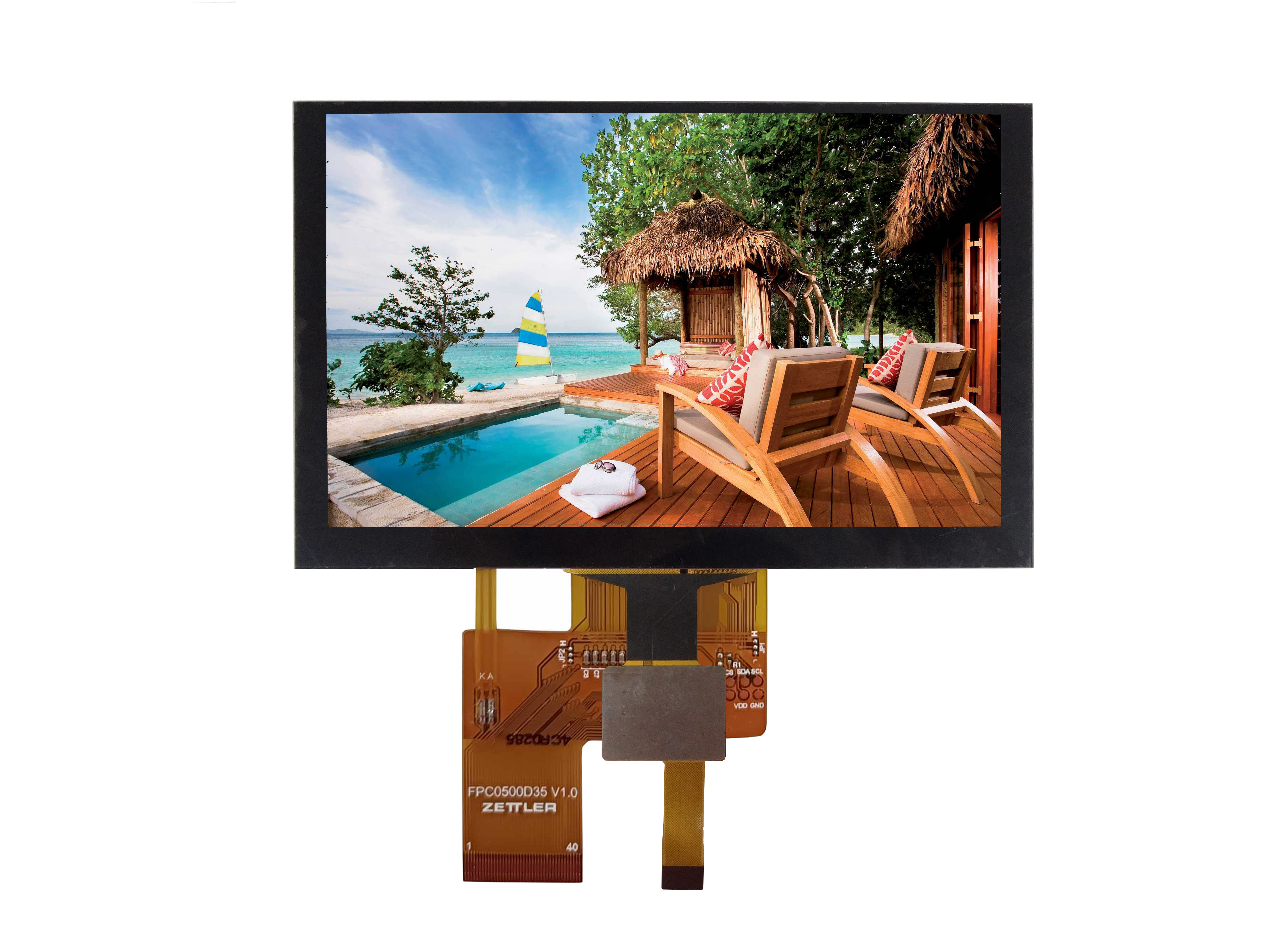

ATM0500D35K-CT Digital TFT LCD Panels
Datasheet
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Overall Module Size | 5 |
| Resolution | 800XR.G.B.X480 |
| Brightness (Nits) | 950 |
| Contrast | 1200 |
| Backlight | - |
| Viewing Angle |
+80/-80 +80/-80 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | - |
| Interface | RGB 24bit |
| Active Area | 108.0X64.8 mm |
| Outline Dimension | 120.7X75.8 mm |
| Viewing Direction | IPS |
| Bonding Type | - |
| Pixel Configuration | - |
