ATM0700L61-T Product Page

Resources

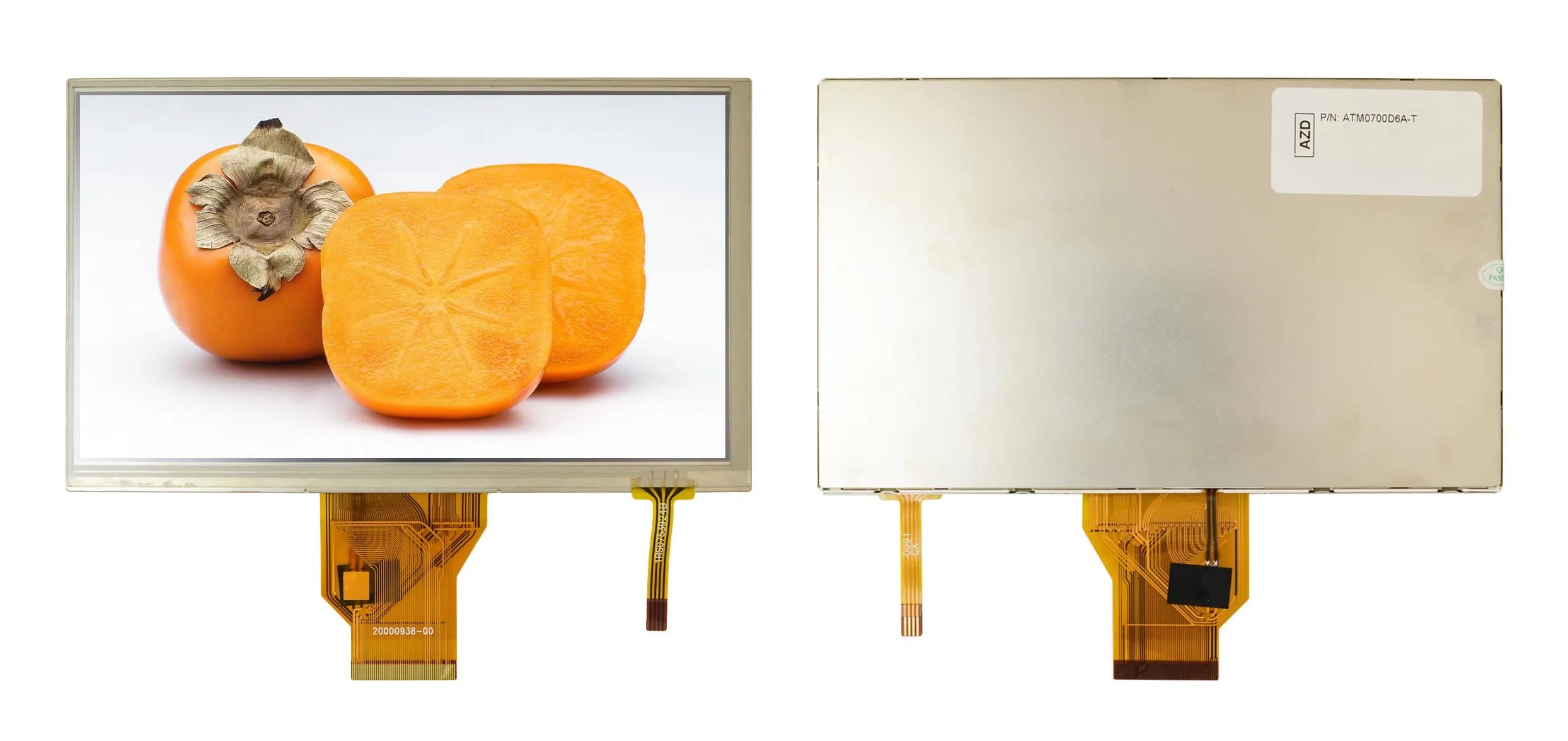

ATM0700L61-T
Product Specifics
Overall Module Size7
Resolution1024 X 600
Brightness (Nits)450
Contrast800
BacklightSELB
Viewing Angle+80/-80
+80/-80
Weight
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+70
InterfaceSELB
Active Area154.21X85.92mm
Outline Dimension164.9X100.0X4.9mm
Viewing DirectionFree
Bonding TypeCOG
Pixel ConfigurationStripe
