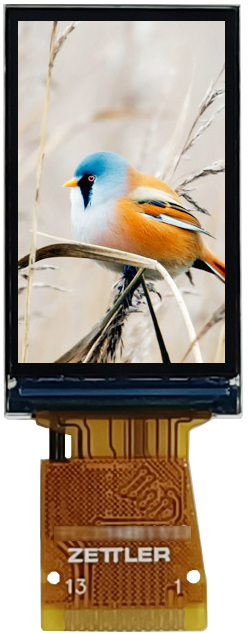

ATM0114B1 Digital TFT LCD Panels
Datasheet
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Overall Module Size | 1.14 |
| Resolution | 135XR.G.B.X240 |
| Brightness (Nits) | 400 |
| Contrast | 600 |
| Backlight | LED |
| Viewing Angle |
+80/-80 +80/-80 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | 4 Wire SPI |
| Active Area | 14.864X24.912 mm |
| Outline Dimension | 17.6X31X1.56 mm |
| Viewing Direction | IPS |
| Bonding Type | - |
| Pixel Configuration | - |
