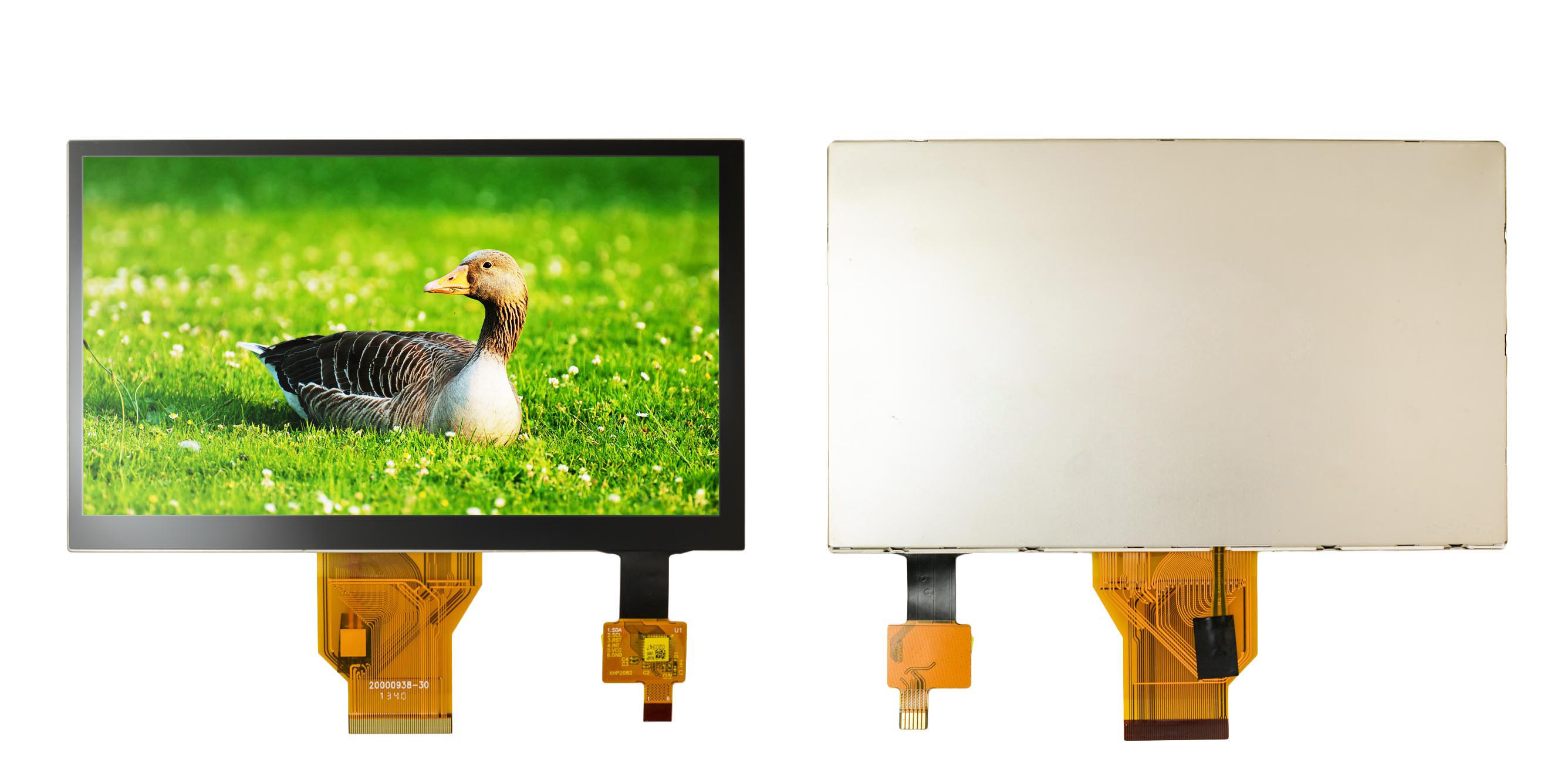

ATM0700D8C-CTN Digital TFT LCD Panels
Datasheet
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Overall Module Size | 7 |
| Resolution | 800XR.G.B.X480 |
| Brightness (Nits) | 425 |
| Contrast | 500 |
| Backlight | - |
| Viewing Angle |
+70/-70 +70/-50 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | - |
| Interface | RGB 24bit |
| Active Area | 154.08X85.92 mm |
| Outline Dimension | 164.90X100.00 mm |
| Viewing Direction | TFT |
| Bonding Type | - |
| Pixel Configuration | - |
