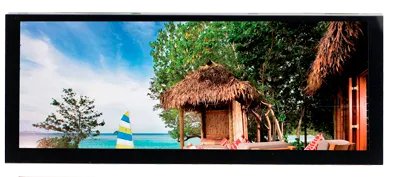

ATM0680L3-CT Product Page
Resources
Datasheet
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 6.8 |
| Resolution | 480 x 1280 |
| Aspect Type | Bar Type |
| Touch | PCAP |
| Brightness (Nits) | 380 |
| Contrast | 1000 |
| Backlight | - |
| Viewing Angle | +80/-80 +80/-80 |
| Weight | |
| Operation Temperature (℃) | -20~+80 |
| Storage Temperature (℃) | -30~+70 |
| Interface | MIPI 4-L |
| Active Area | 60.22X160.59mm |
| Outline Dimension | 72.75X181.00X6.60 |
| Viewing Direction | Free |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
