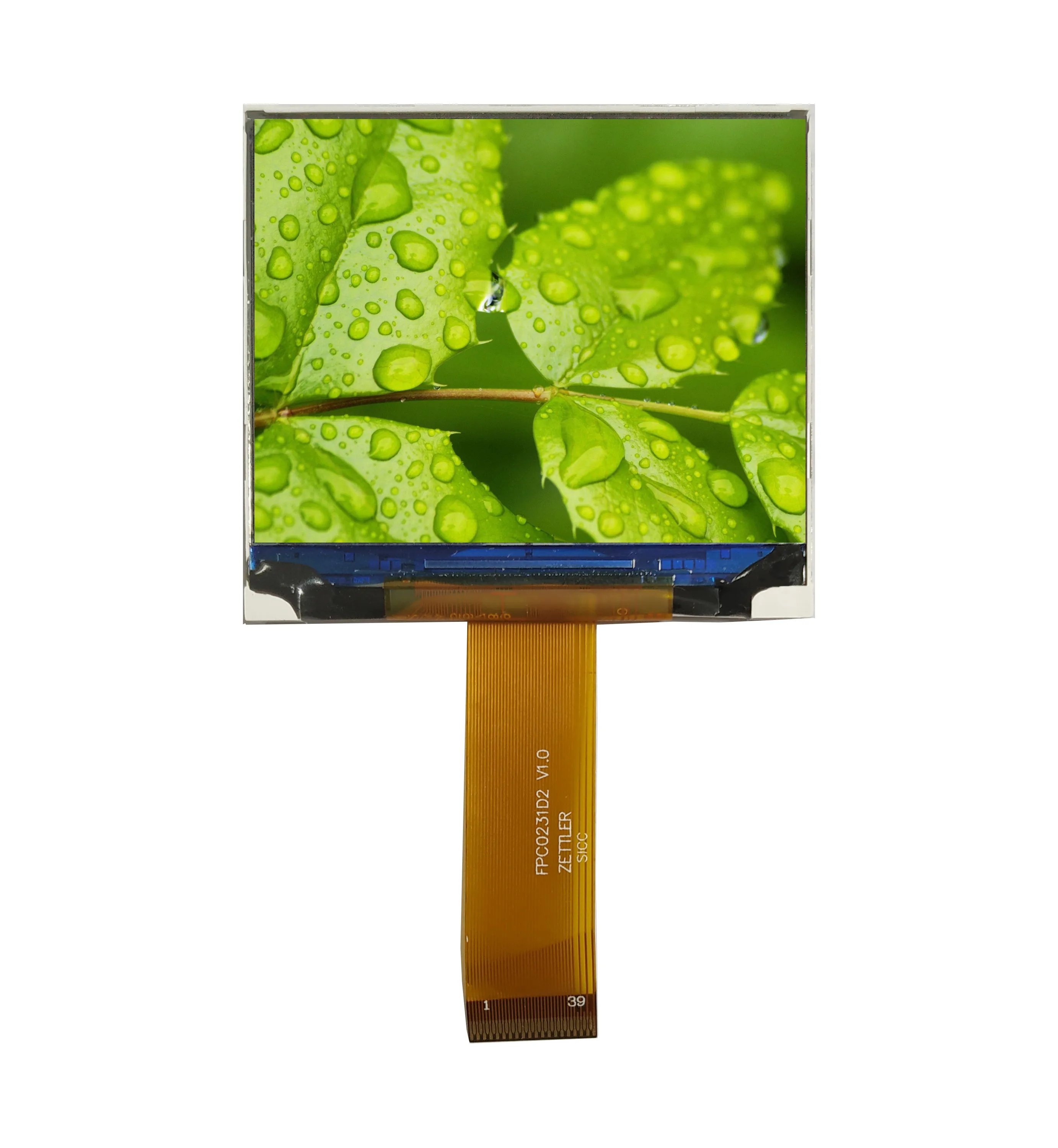

ATM0231D2 Product Page
Resources
Datasheet
Request a Quote
Total Qty Available: 401
| Product Specifics | |
|---|---|
| Overall Module Size | 2.31 |
| Resolution | 320 x 240 |
| Aspect Type | Wide |
| Touch | None |
| Brightness (Nits) | 350 |
| Contrast | 500 |
| Backlight | - |
| Viewing Angle | +80/-80 +80/-80 |
| Weight | 9.7g |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | 18bit RGB |
| Active Area | 46.752X35.06 mm |
| Outline Dimension | 51X45.8X2.5mm |
| Viewing Direction | Free |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
