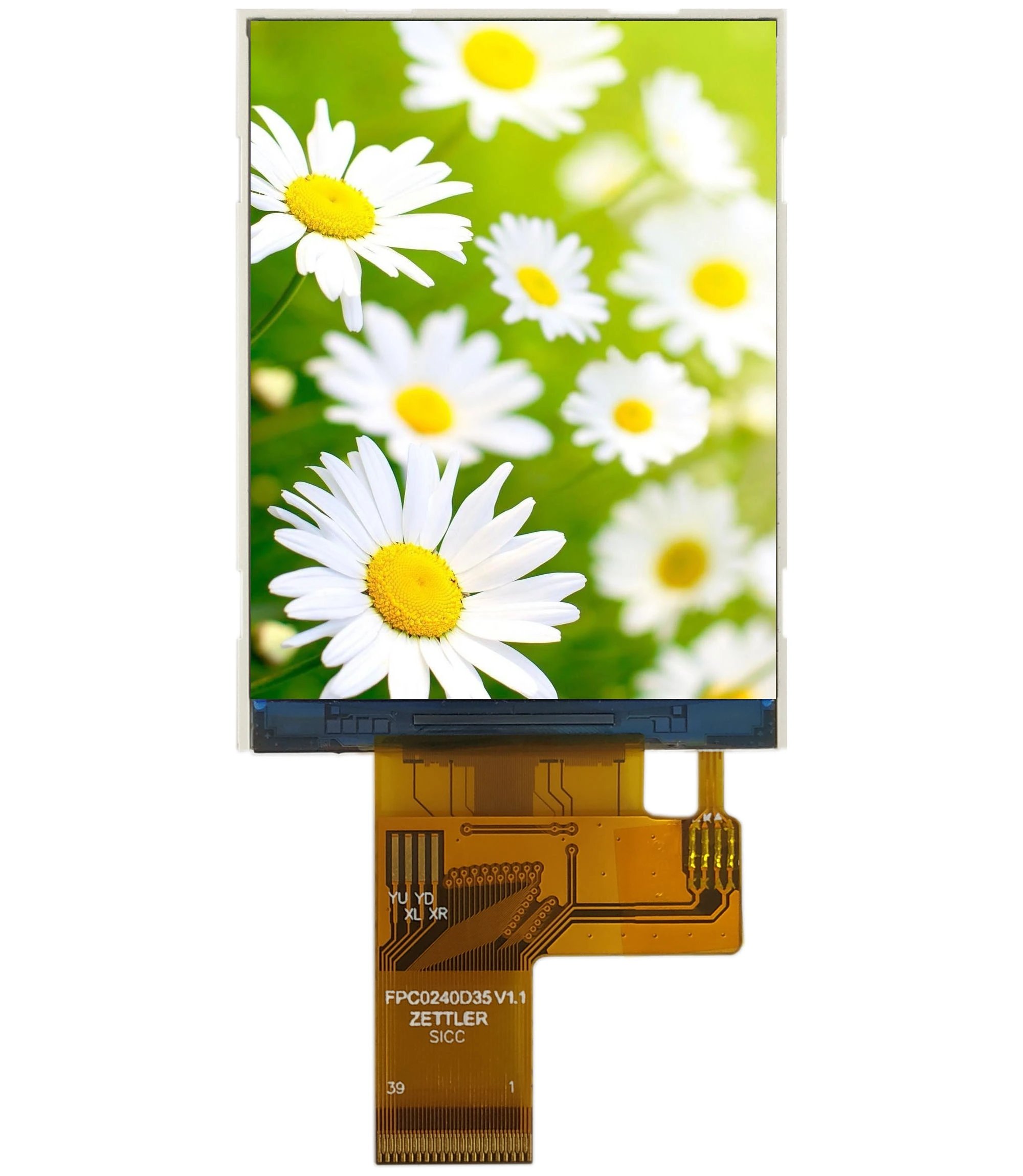

ATM0240D35 Digital TFT LCD Panels
Datasheet
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Overall Module Size | 2.4 |
| Resolution | 240XR.G.B.X320 |
| Brightness (Nits) | 900 |
| Contrast | 800 |
| Backlight | LED |
| Viewing Angle |
+80/-80 +80/-80 |
| Weight | - |
| Operation Temperature (℃) | -20~+60 |
| Storage Temperature (℃) | - |
| Interface | MCU/RGB |
| Active Area | 36.72X48.96 mm |
| Outline Dimension | 41.72X57.06 mm |
| Viewing Direction | IPS |
| Bonding Type | - |
| Pixel Configuration | - |
