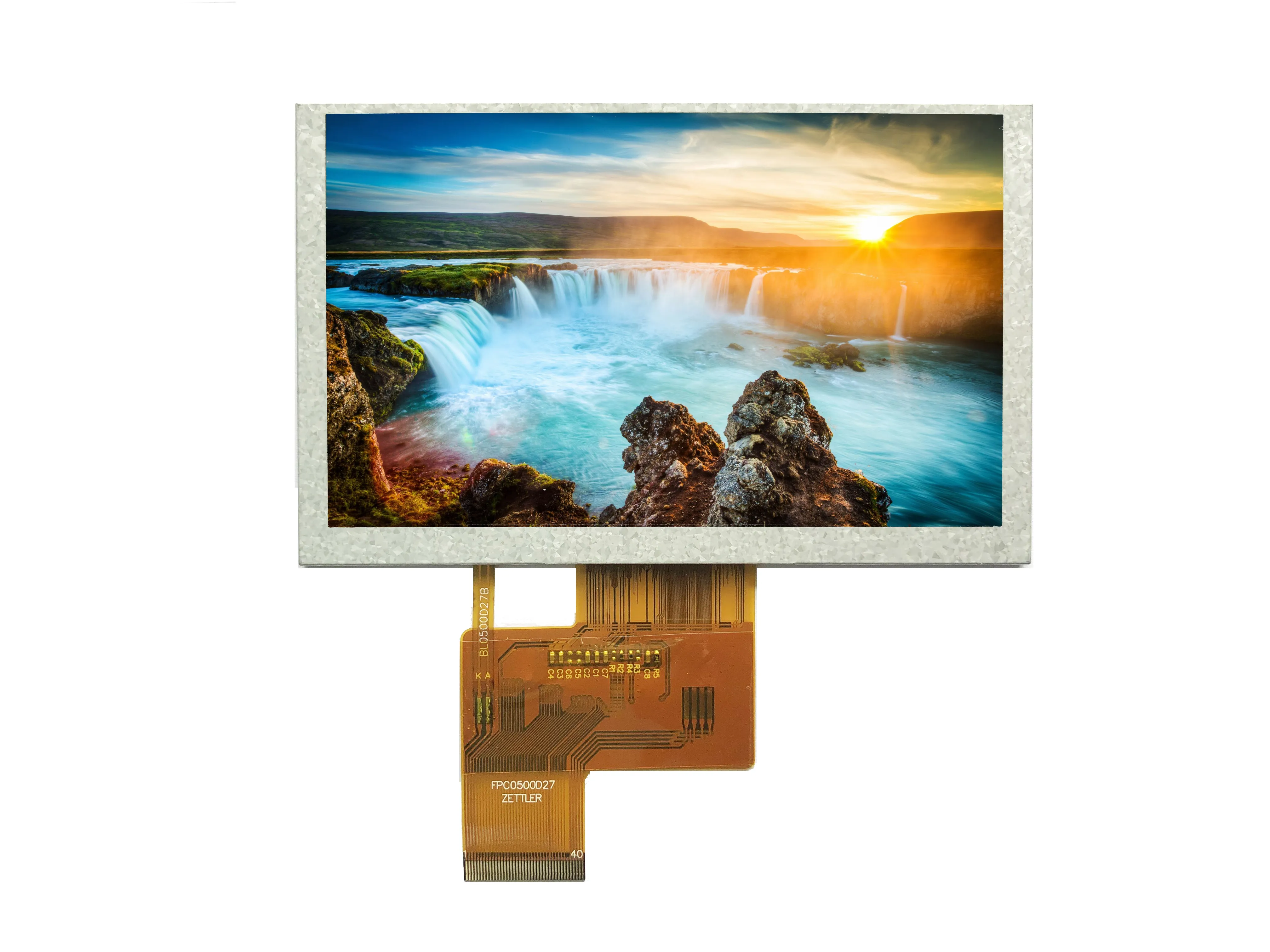

ATM0500L27B Digital TFT LCD Panels

Resources

ATM0500L27B

Product Specifics
Overall Module Size	5
Resolution	800 X 480
Brightness (Nits)	700
Contrast	1000
Backlight	LED
Viewing Angle	+80/-80 +80/-80
Weight
Operation Temperature (℃)	-20~70
Storage Temperature (℃)	-30~+80
Interface	RGB
Active Area	108.00X64.80mm
Outline Dimension	120.70X75.80X3.00mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
