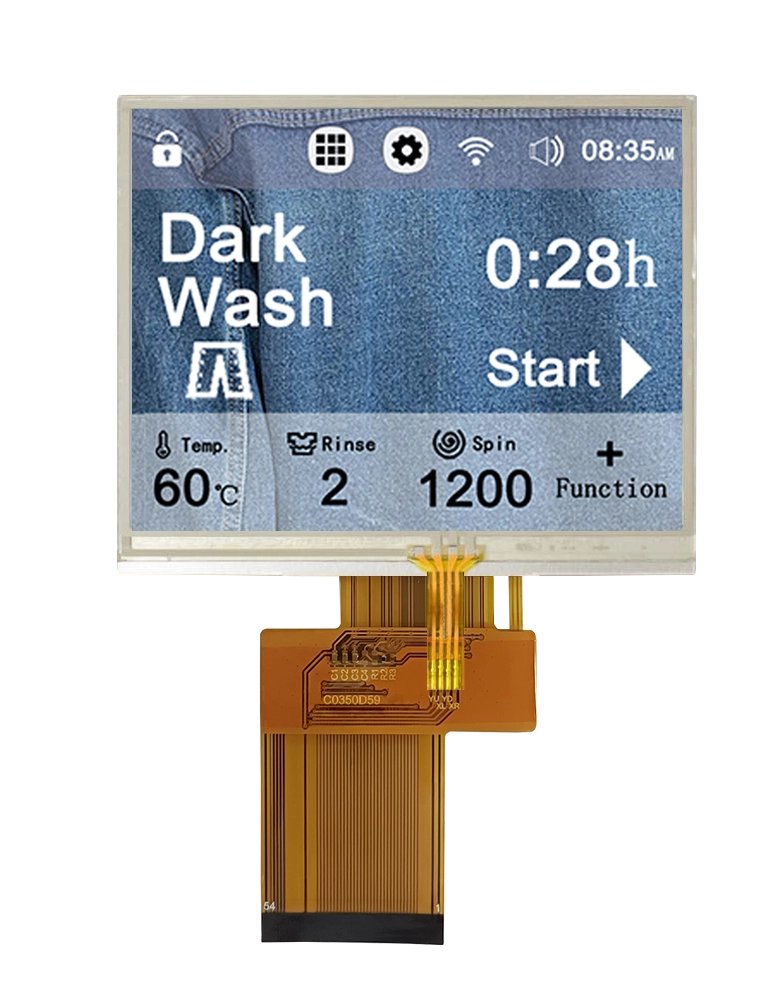

ATM0350D59B-T Digital TFT LCD Panels
Datasheet
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Overall Module Size | 3.5 |
| Resolution | 320XR.G.B.X240 |
| Brightness (Nits) | 400 |
| Contrast | 800 |
| Backlight | LED |
| Viewing Angle |
+80/-80 +80/-80 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | - |
| Interface | RGB |
| Active Area | 70.08X52.56 mm |
| Outline Dimension | 76.85X63.90 mm |
| Viewing Direction | IPS |
| Bonding Type | - |
| Pixel Configuration | - |
