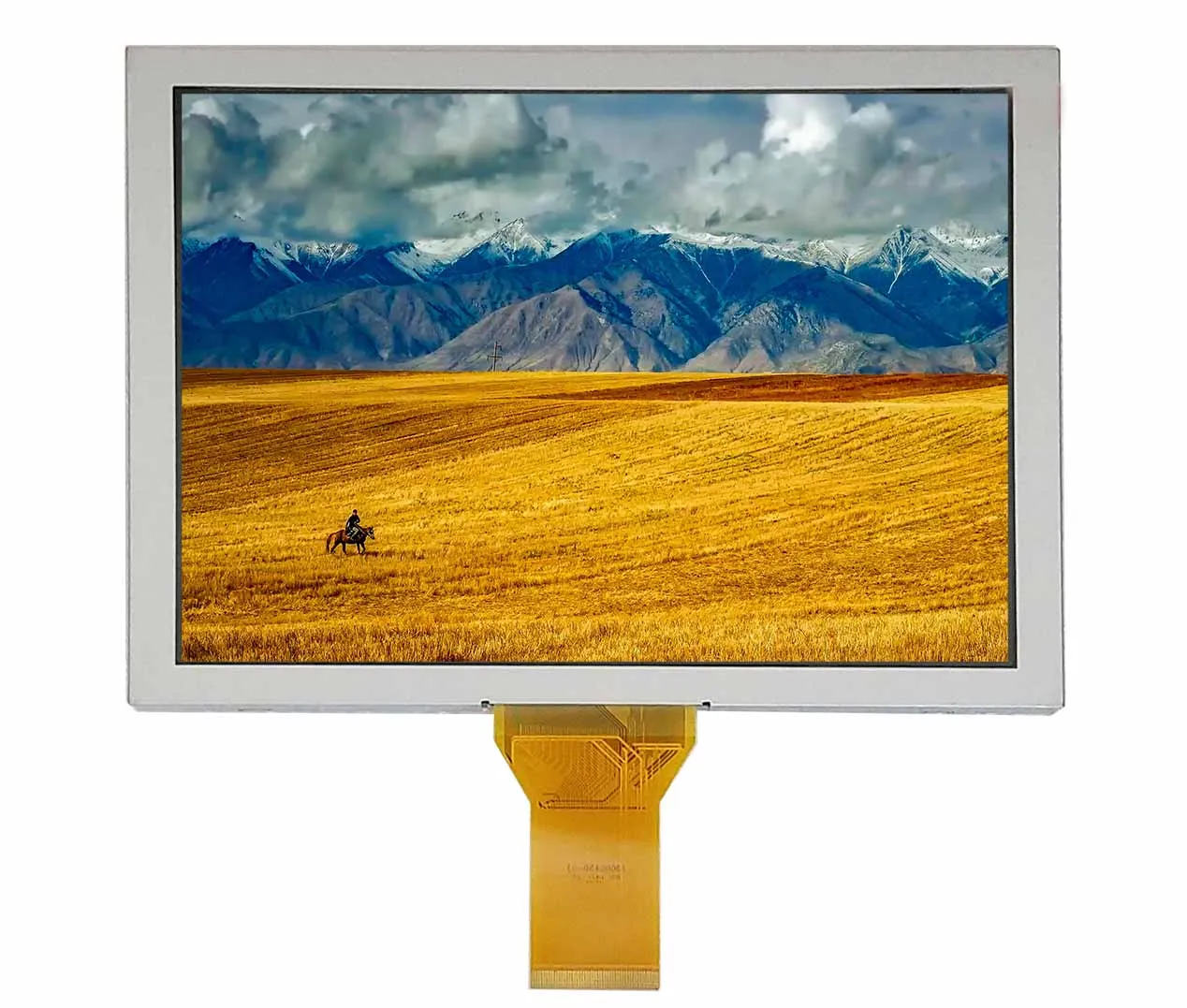

ATM0800D9 Product Page
Datasheet
3D CAD File (IGS)
View Part Drawing
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 8 |
| Resolution | 800 x 600 |
| Aspect Ratio | - |
| Touch | None |
| Brightness (Nits) | 350 |
| Contrast | 500 |
| Backlight | - |
| Viewing Angle | +70/-70 +50/-70 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | Digital RGB |
| Active Area | 162X121.5 mm |
| Outline Dimension | 183.0X141.0X6.4 mm |
| Viewing Direction | 12 O'clock |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
