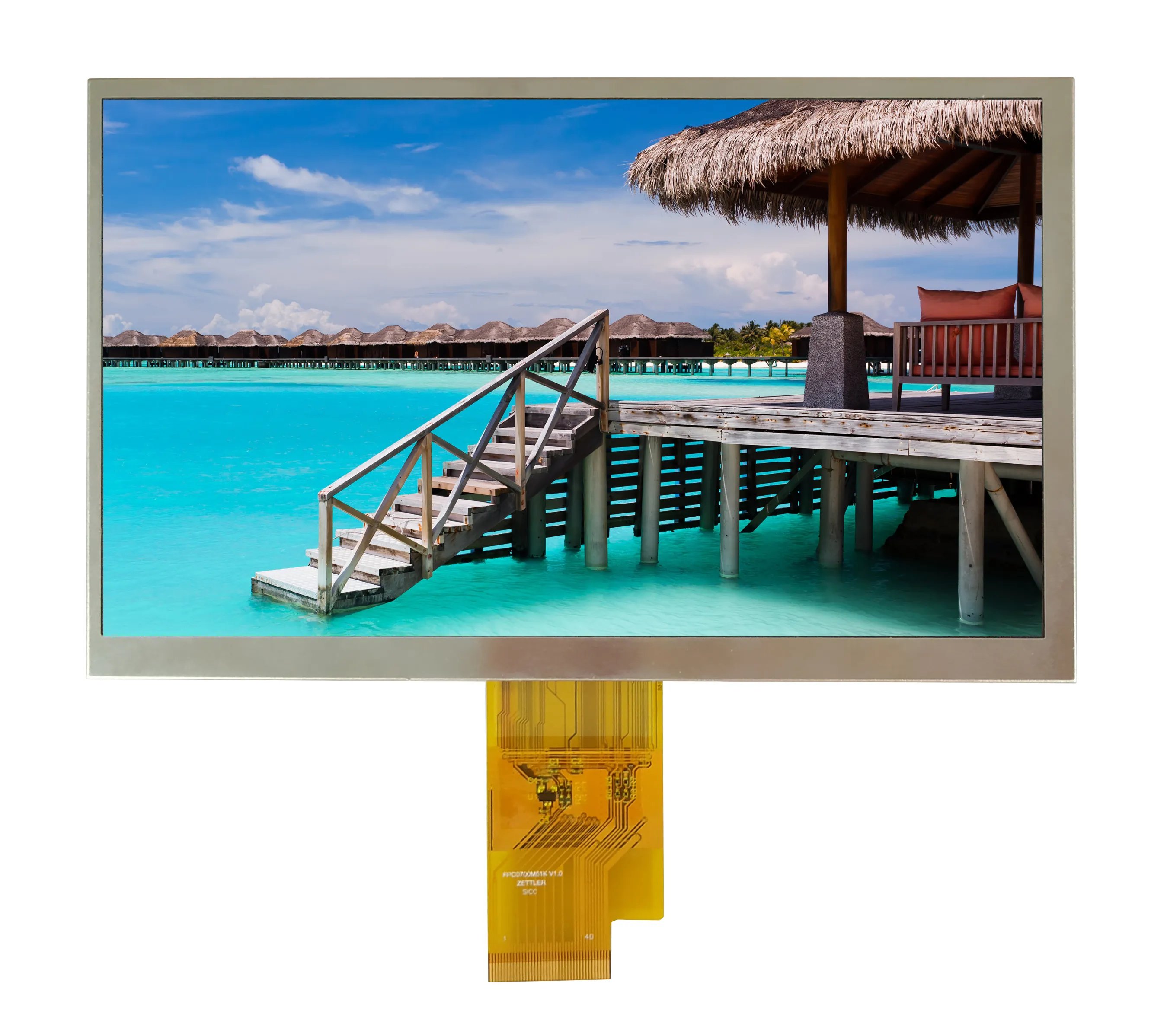

ATM0700M61K Product Page
Resources
Datasheet
Request a Quote
Total Qty Available: 45
| Product Specifics | |
|---|---|
| Overall Module Size | 7 |
| Resolution | 1024 X 600 |
| Brightness (Nits) | 1100 |
| Contrast | 800 |
| Backlight | RGB |
| Viewing Angle | +80/-80 +80/-80 |
| Weight | |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | MIPI |
| Active Area | 154.21X85.92mm |
| Outline Dimension | 164.9X100.0X5.7mm |
| Viewing Direction | Free |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
