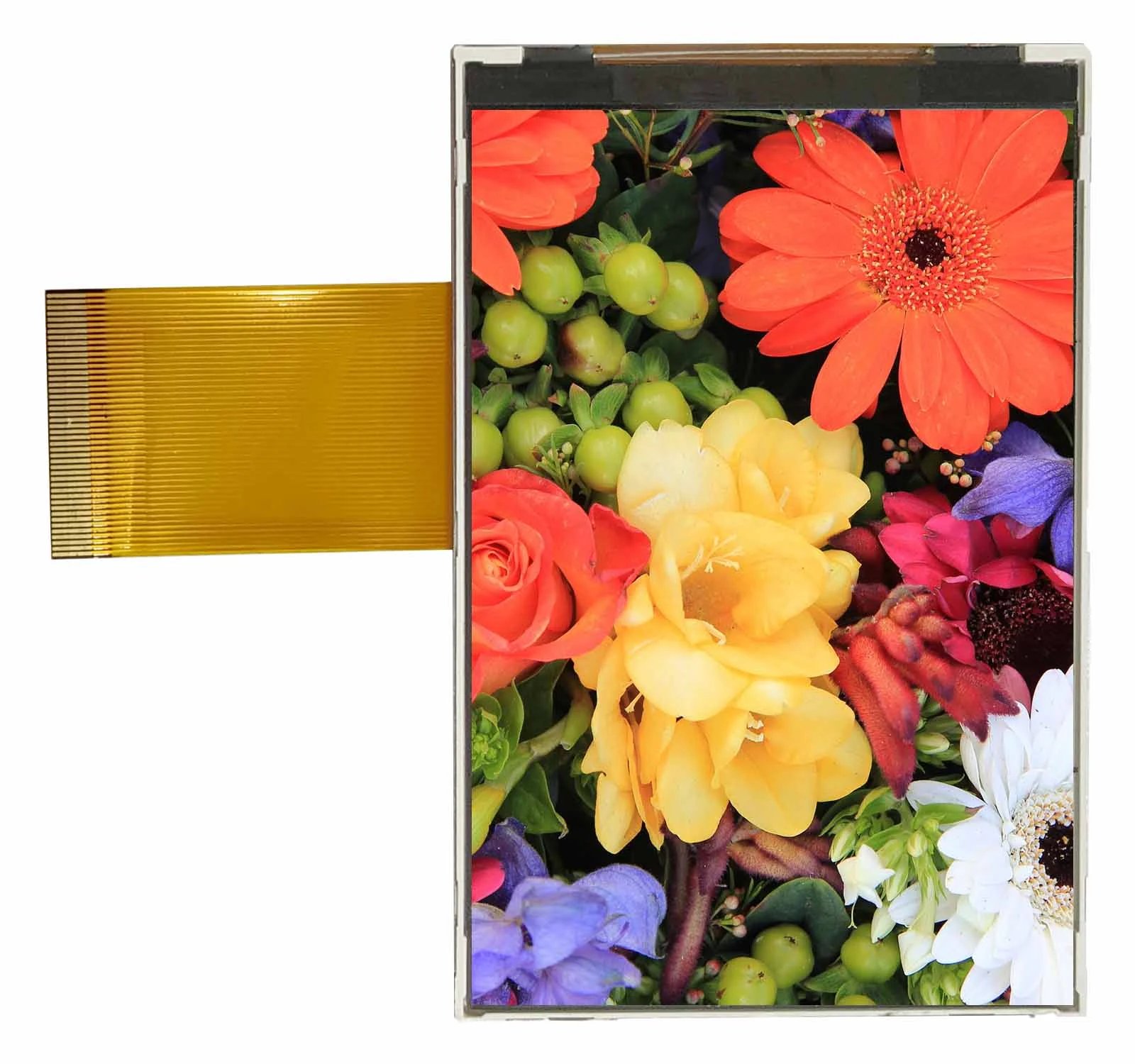

ATM0350B53 Digital TFT LCD Panels
Datasheet
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Overall Module Size | 3.5 |
| Resolution | 320XR.G.B.X480 |
| Brightness (Nits) | 300 |
| Contrast | 1000 |
| Backlight | - |
| Viewing Angle |
+85/-85 +85/-85 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | - |
| Interface | MCU/RGB |
| Active Area | 48.96X73.44 mm |
| Outline Dimension | 54.46X82.94 mm |
| Viewing Direction | IPS |
| Bonding Type | - |
| Pixel Configuration | - |
