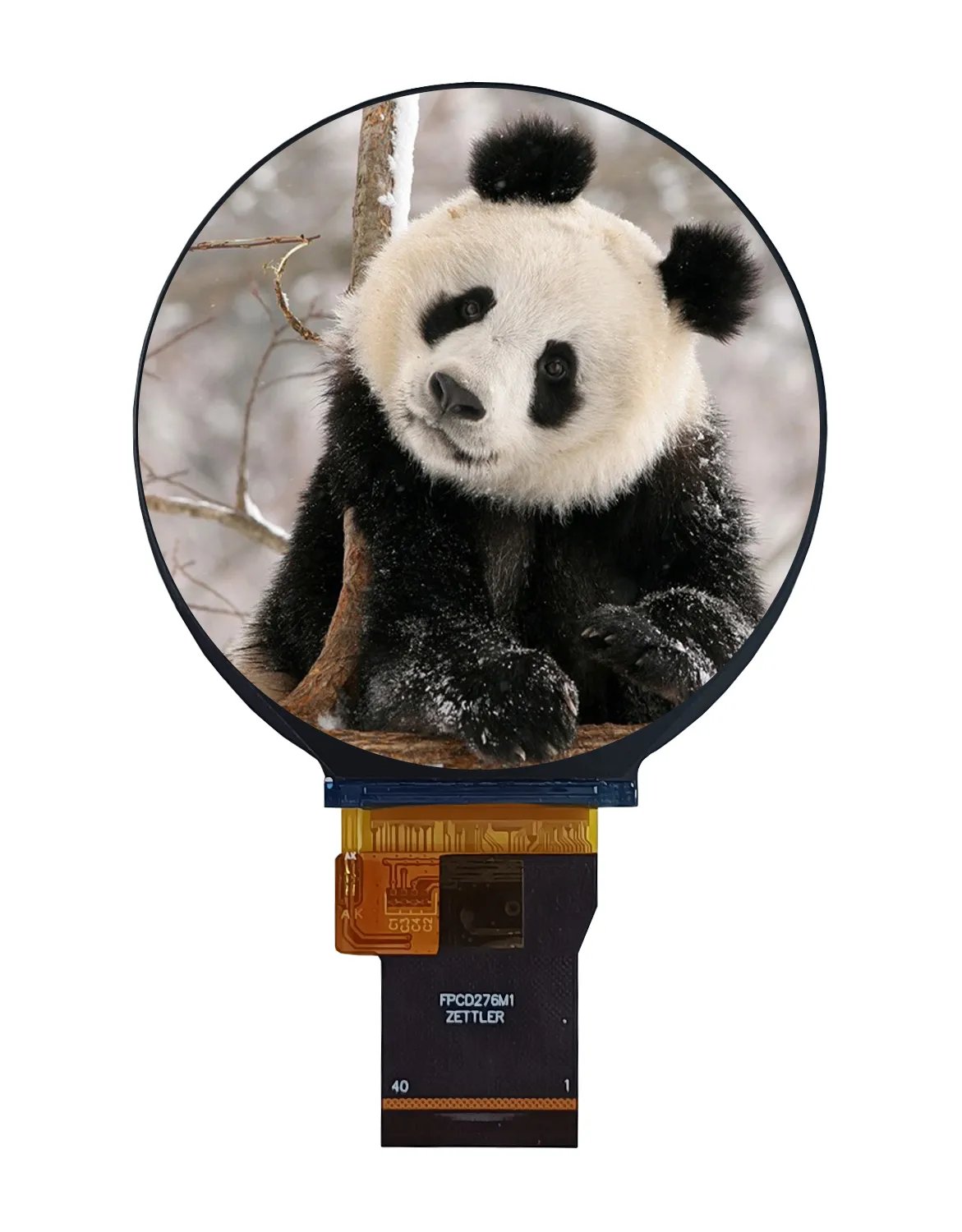

ATMD276M1 Product Page
Resources
Datasheet
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 2.76 |
| Resolution | 480 x 480 |
| Aspect Type | Round |
| Touch | None |
| Brightness (Nits) | 300 |
| Contrast | 1200 |
| Backlight | - |
| Viewing Angle | +85/-85 |
| Weight | 20.5g |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | 2 lane MIPI |
| Active Area | 70.128X70.128 mm |
| Outline Dimension | 73.03X76.48X2.26mm |
| Viewing Direction | Free |
| Bonding Type | |
| Pixel Configuration | |
