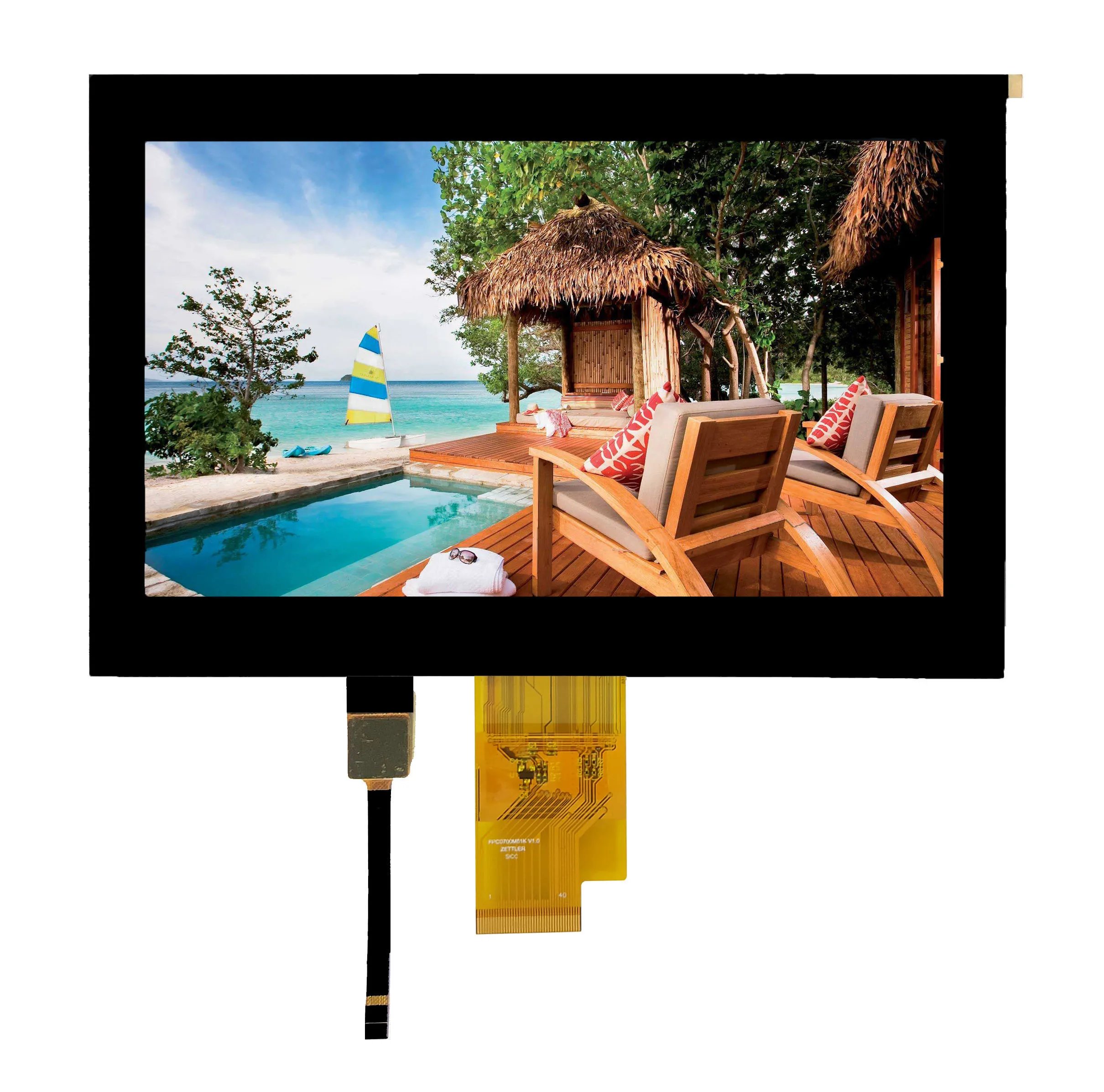

ATM0700M61K-CT Product Page
Resources
Datasheet
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 7 |
| Resolution | 1024 x 600 |
| Aspect Type | Wide |
| Touch | PCAP |
| Brightness (Nits) | 1000 |
| Contrast | 800 |
| Backlight | - |
| Viewing Angle | +80/-80 +80/-80 |
| Weight | 222g |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | MIPI |
| Active Area | 154.21X85.92mm |
| Outline Dimension | 176.42X115.7X8.3mm |
| Viewing Direction | Free |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
