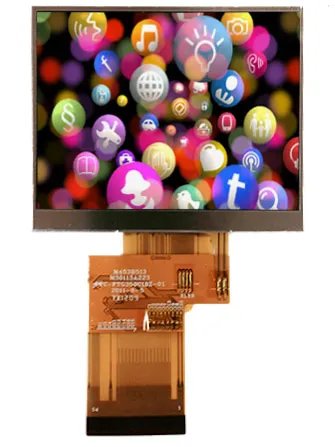

ATM0350D2 Product Page
Datasheet
View Part Drawing
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 3.5 |
| Resolution | 320 x 240 |
| Aspect Type | Wide |
| Touch | None |
| Brightness (Nits) | 400 |
| Contrast | 300 |
| Backlight | - |
| Viewing Angle | +55/-60 +75/-75 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | Digital RGB |
| Active Area | 70.08X52.56 mm |
| Outline Dimension | 76.9X63.90X3.2 mm |
| Viewing Direction | 6 O'clock |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
