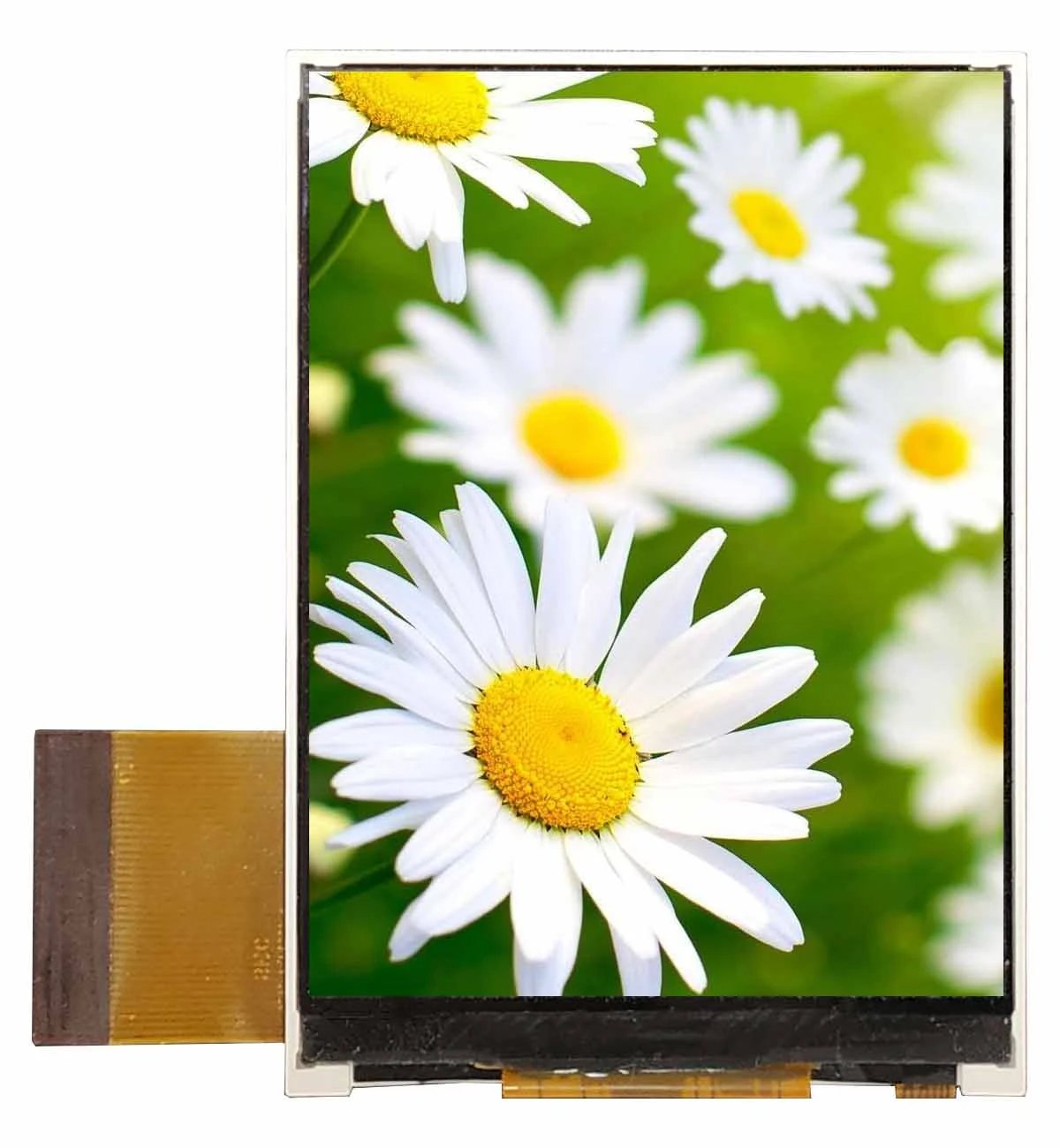

ATM0280B3A Digital TFT LCD Panels

Resources

ATM0280B3A

Product Specifics
Overall Module Size	2.8
Resolution	240XR.G.B.X320
Brightness (Nits)	1000
Contrast	800
Backlight	LED
Viewing Angle	+80/-80 +80/-80
Weight	-
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-
Interface	MCU (RGB)
Active Area	43.2X57.6 mm
Outline Dimension	48.2X67.85 mm
Viewing Direction	IPS
Bonding Type	-
Pixel Configuration	-
