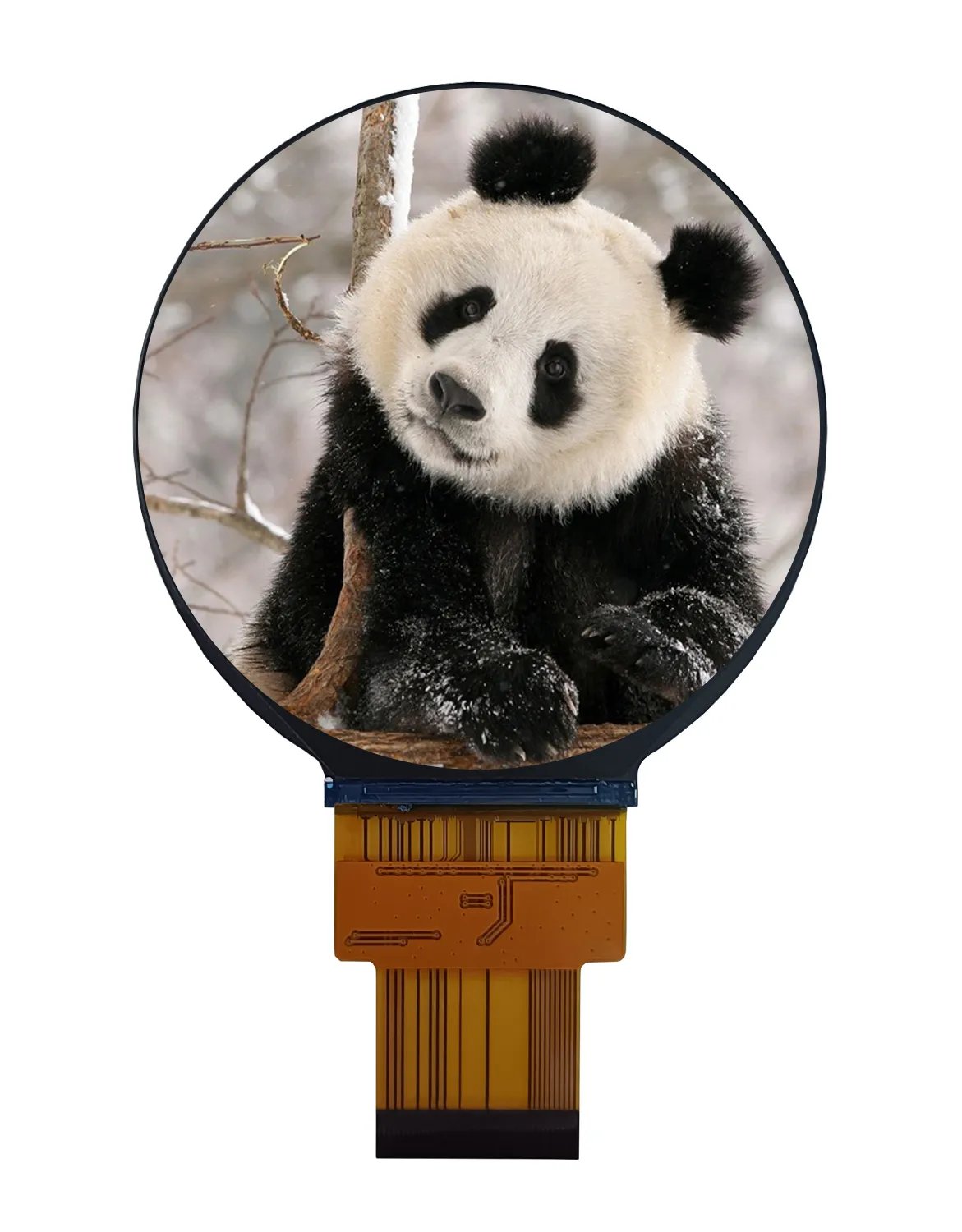

ATMD210M1B Product Page
Resources
Datasheet
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 2.1 |
| Resolution | 480 x 480 |
| Aspect Type | Round |
| Touch | None |
| Brightness (Nits) | 600 |
| Contrast | 1000 |
| Backlight | - |
| Viewing Angle | +85/-85 |
| Weight | |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | 2 lane MIPI |
| Active Area | 53.28X53.28 mm |
| Outline Dimension | 56.18X59.71X2.22mm |
| Viewing Direction | Free |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
