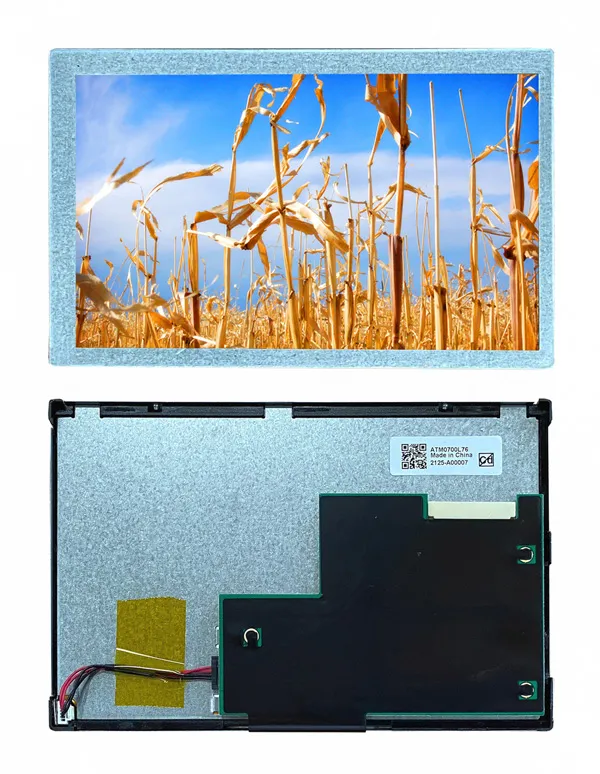

ATM0700L76 Digital TFT LCD Panels

Resources

ATM0700L76

Product Specifics
Overall Module Size	7
Resolution	840 X 480
Brightness (Nits)	300
Contrast	-
Backlight	LED
Viewing Angle	+85/-85 +85/-85
Weight	190g
Operation Temperature (℃)	-40~+85
Storage Temperature (℃)	-40~+85
Interface	LVDS
Active Area	152.40X91.44mm
Outline Dimension	170.00X110.00X9.00mm
Viewing Direction	Free
Bonding Type
Pixel Configuration
