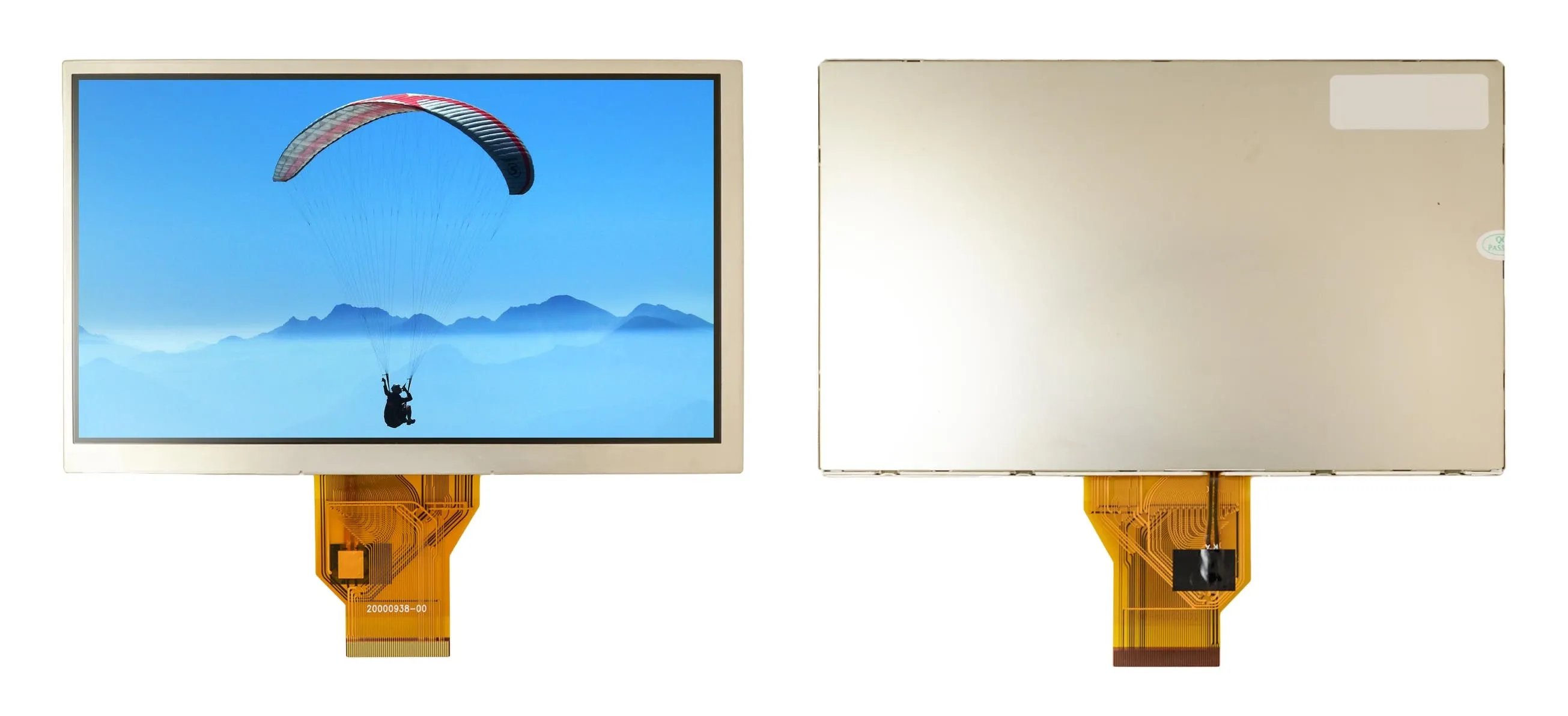

ATM0700L47 Product Page
Datasheet
View Part Drawing
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 7 |
| Resolution | 1024 x 600 |
| Aspect Type | Wide |
| Touch | None |
| Brightness (Nits) | 500 |
| Contrast | 600 |
| Backlight | - |
| Viewing Angle | +80/-80 +70/-60 |
| Weight | 150 g |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | LVDS |
| Active Area | 154.21X85.92 mm |
| Outline Dimension | 164.9X100.0X7.1 mm |
| Viewing Direction | 6 O'clock |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
