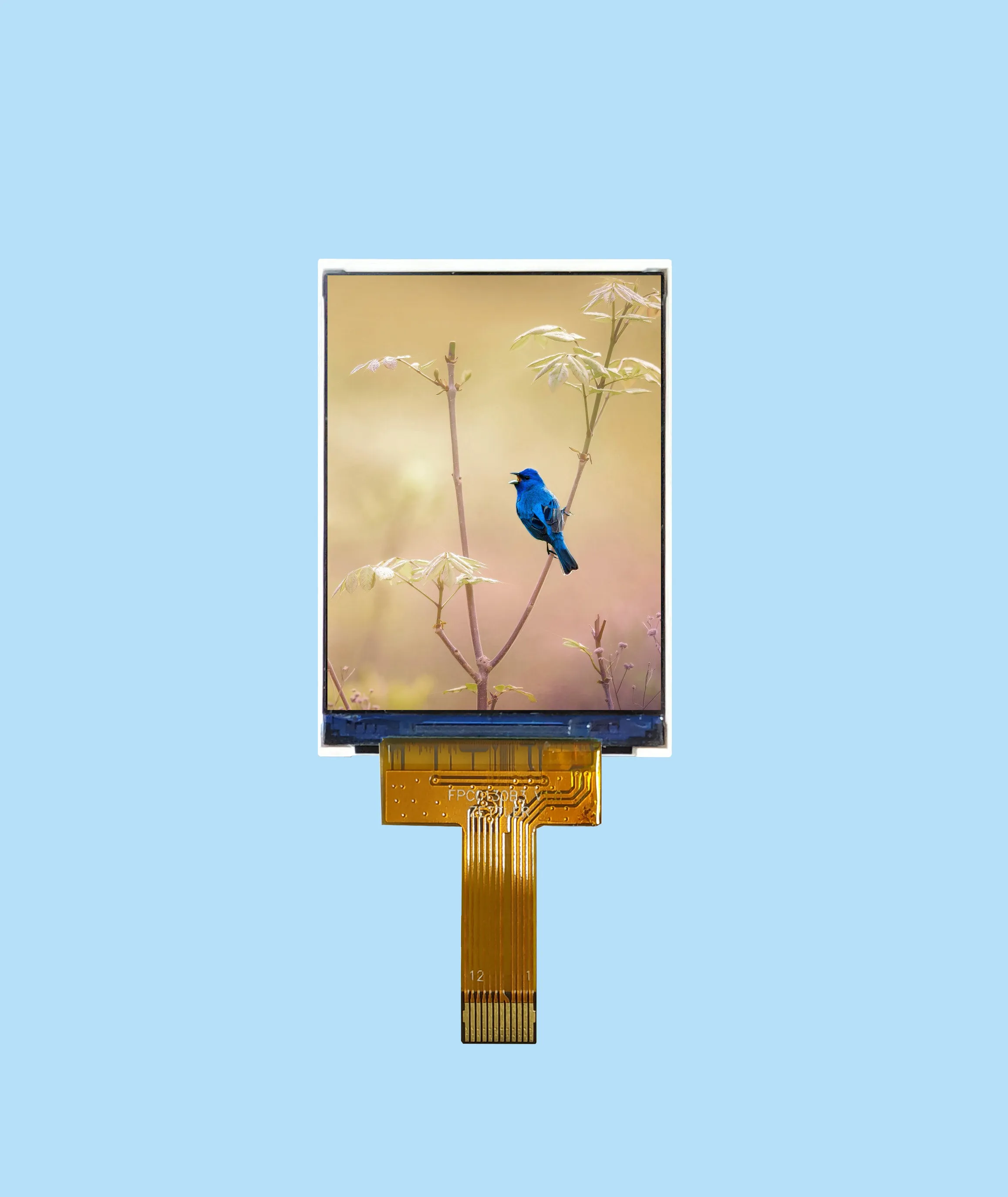

ATM0200B3 Digital TFT LCD Panels

Resources

ATM0200B3

Product Specifics
Overall Module Size	2
Resolution	240 X 320
Brightness (Nits)	800
Contrast	800
Backlight	LED
Viewing Angle	+80/-80 +80/-80
Weight	8.5g
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	4-wire SPI interface
Active Area	30.6X40.8mm
Outline Dimension	34.8X48.8X2.45mm
Viewing Direction	Free
Bonding Type
Pixel Configuration	Stripe
