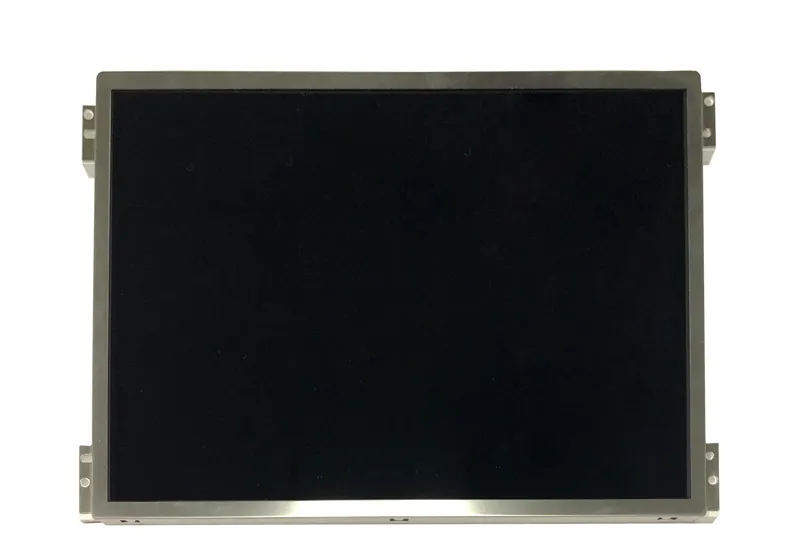

ATM1040L10A Product Page
Resources
Datasheet
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 10.4 |
| Resolution | 1024 x 768 |
| Aspect Type | Wide |
| Touch | None |
| Brightness (Nits) | 1200 |
| Contrast | 1000 |
| Backlight | - |
| Viewing Angle | +80/-80 +80/-80 |
| Weight | |
| Operation Temperature (℃) | -30~+80 |
| Storage Temperature (℃) | -30~+80 |
| Interface | LVDS |
| Active Area | 210.432X157.824mm |
| Outline Dimension | 238.6X175.8X6.5mm |
| Viewing Direction | Free |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
