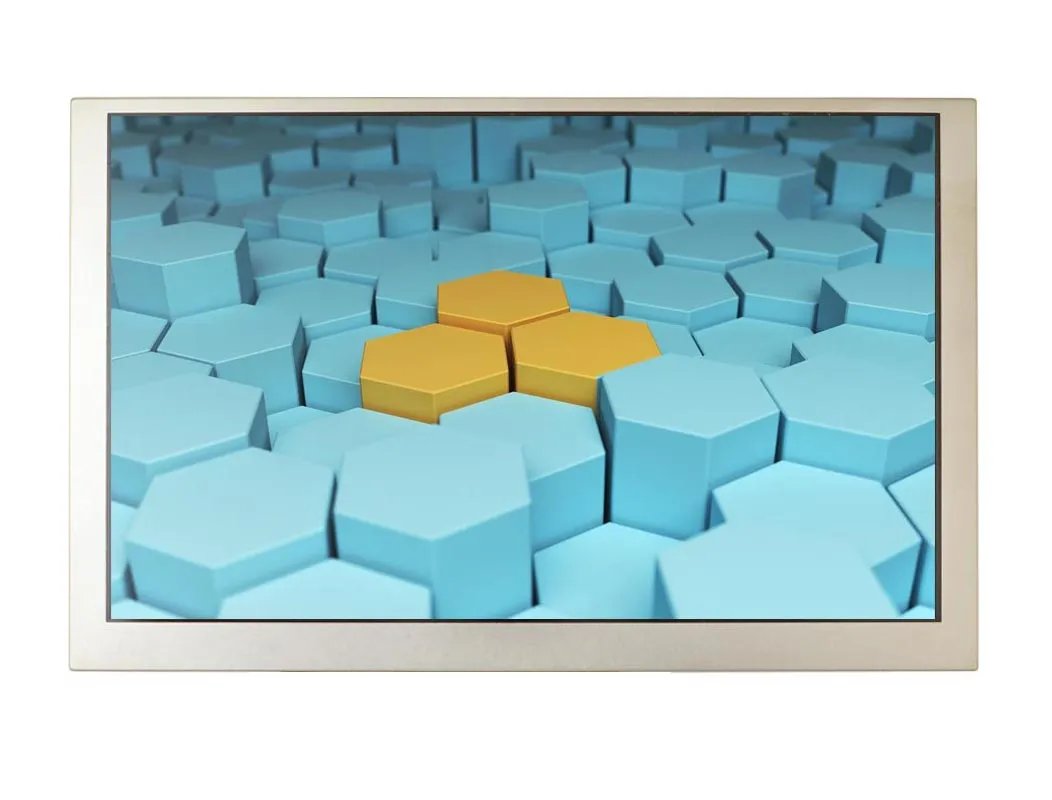

ATM0500L19B Product Page
Datasheet
View Part Drawing
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 5 |
| Resolution | 800 x 480 |
| Aspect Type | Wide |
| Touch | None |
| Brightness (Nits) | 500 |
| Contrast | 800 |
| Backlight | - |
| Viewing Angle | +80/-80 +80/-80 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | LVDS |
| Active Area | 108.0X64.80mm |
| Outline Dimension | 120.7X75.8X7.4mm |
| Viewing Direction | 12 O'clock |
| Bonding Type | - |
| Pixel Configuration | Stripe |
