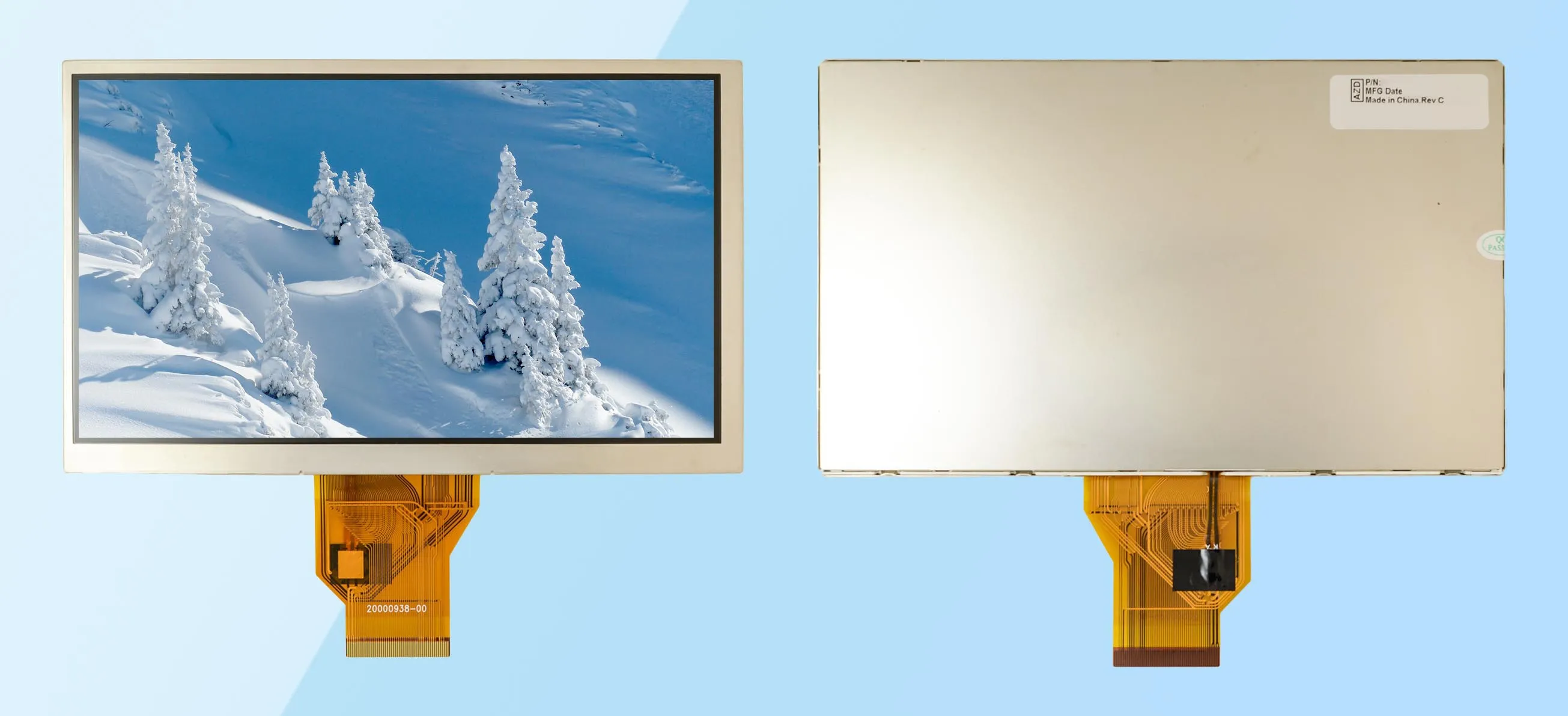

ATM0700D6J Digital TFT LCD Panels

Resources

ATM0700D6J

Product Specifics
Overall Module Size	7
Resolution	800 X 480
Brightness (Nits)	1000
Contrast	500
Backlight	LED
Viewing Angle	+50/-70 +70/-50
Weight	150 g
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	Digital RGB
Active Area	154.08X85.92mm
Outline Dimension	165.0X100.0X5.8mm
Viewing Direction	12 O'clock
Bonding Type	COG
Pixel Configuration	Stripe
