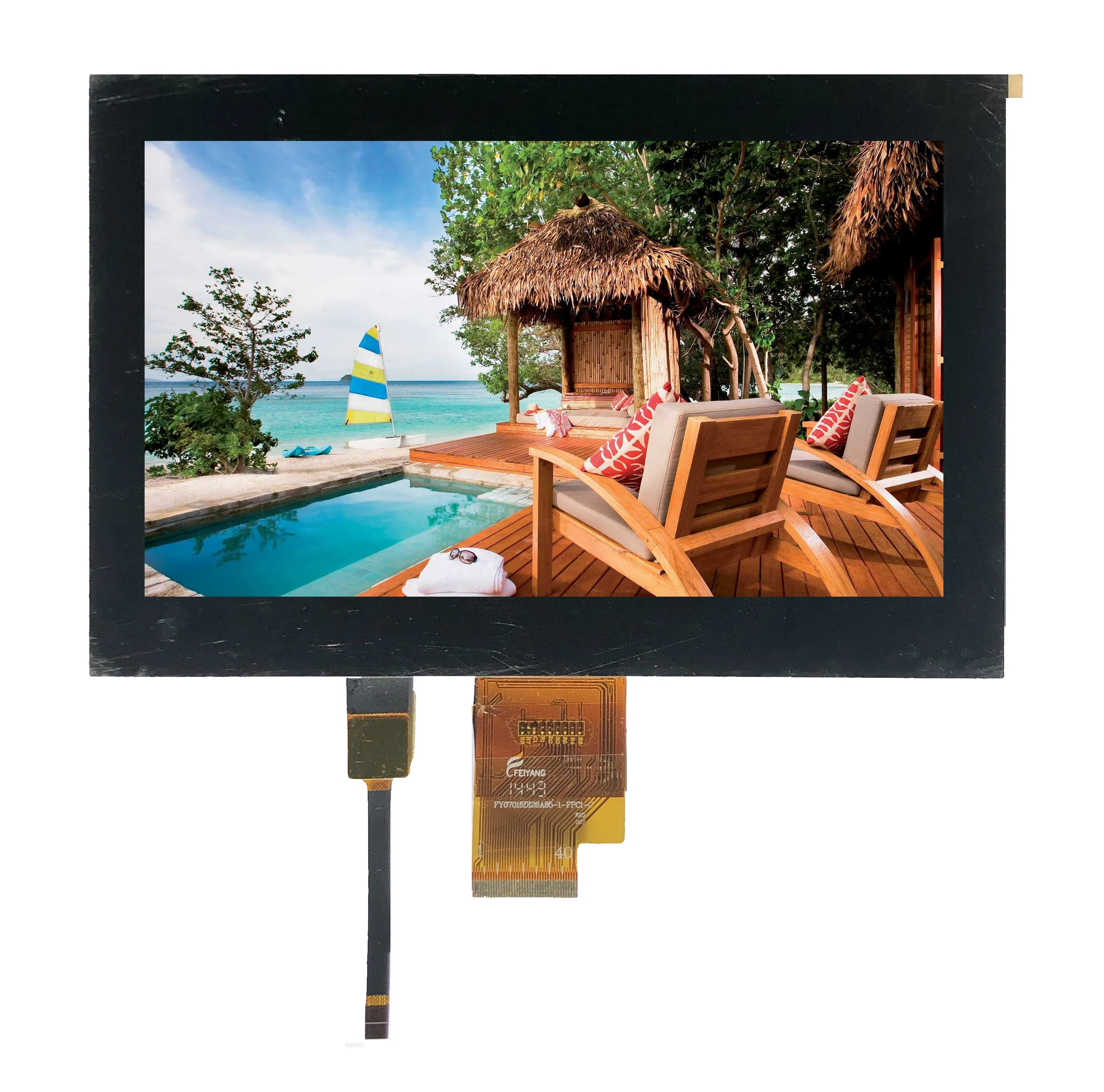

ATM0700L61K-CT Digital TFT LCD Panels

Resources

ATM0700L61K-CT

Product Specifics
Overall Module Size	7
Resolution	1024 X 600
Brightness (Nits)	1000
Contrast	800
Backlight	LED
Viewing Angle	+80/-80 +80/-80
Weight
Operation Temperature (℃)	-20~+70
Storage Temperature (℃)	-30~+80
Interface	SELB
Active Area	154.2X85.92mm
Outline Dimension	184.9X120.00X9.00mm
Viewing Direction	Free
Bonding Type	COG
Pixel Configuration	Stripe
