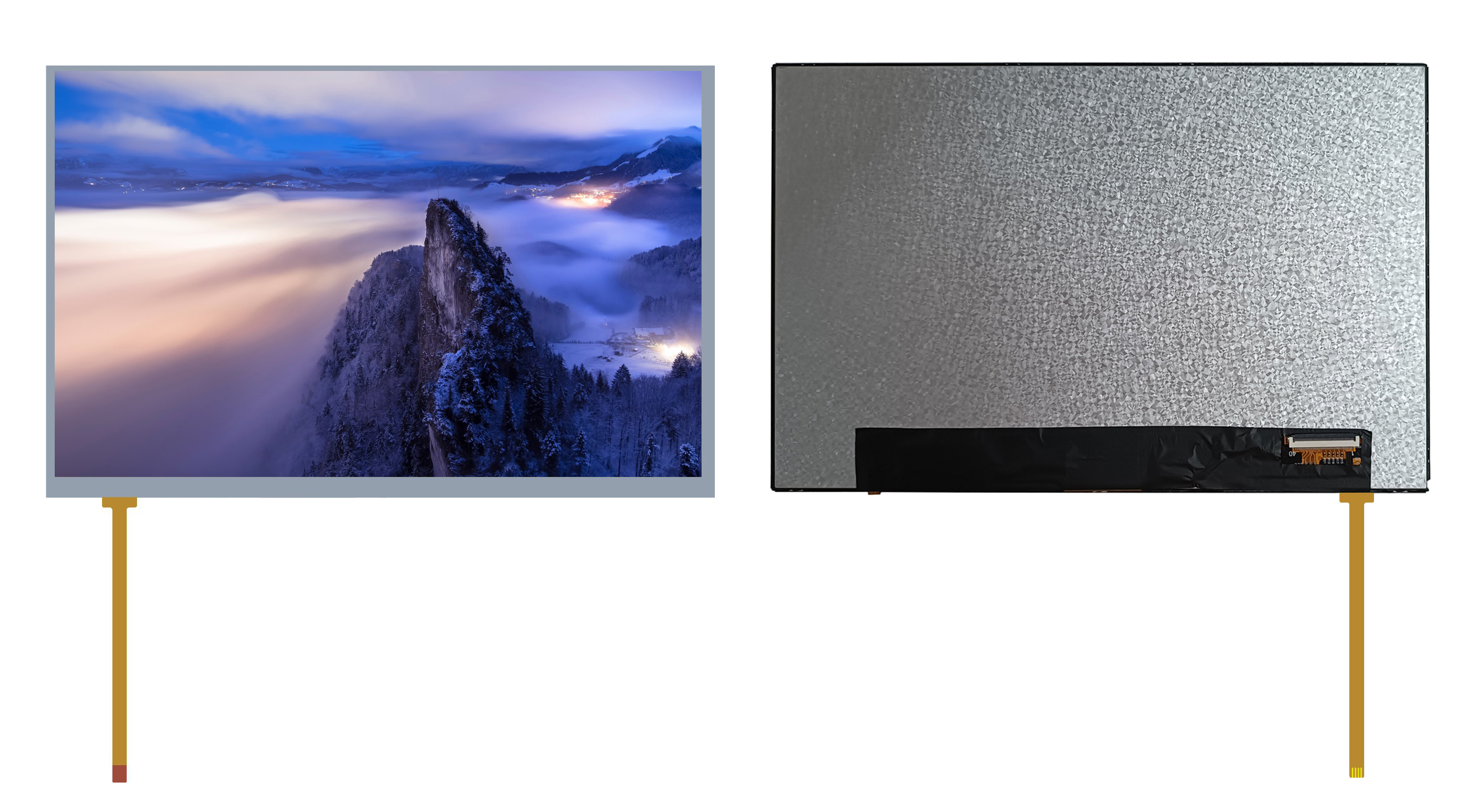

ATM1010L1K-T Digital TFT LCD Panels
Datasheet
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Overall Module Size | 10.1 |
| Resolution | 1280XR.G.B.X800 |
| Brightness (Nits) | 800 |
| Contrast | 800 |
| Backlight | - |
| Viewing Angle |
+80/-80 +80/-80 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | - |
| Interface | LVDS |
| Active Area | 216.96X135.6 mm |
| Outline Dimension | 229.5X149.1 mm |
| Viewing Direction | IPS |
| Bonding Type | - |
| Pixel Configuration | - |
