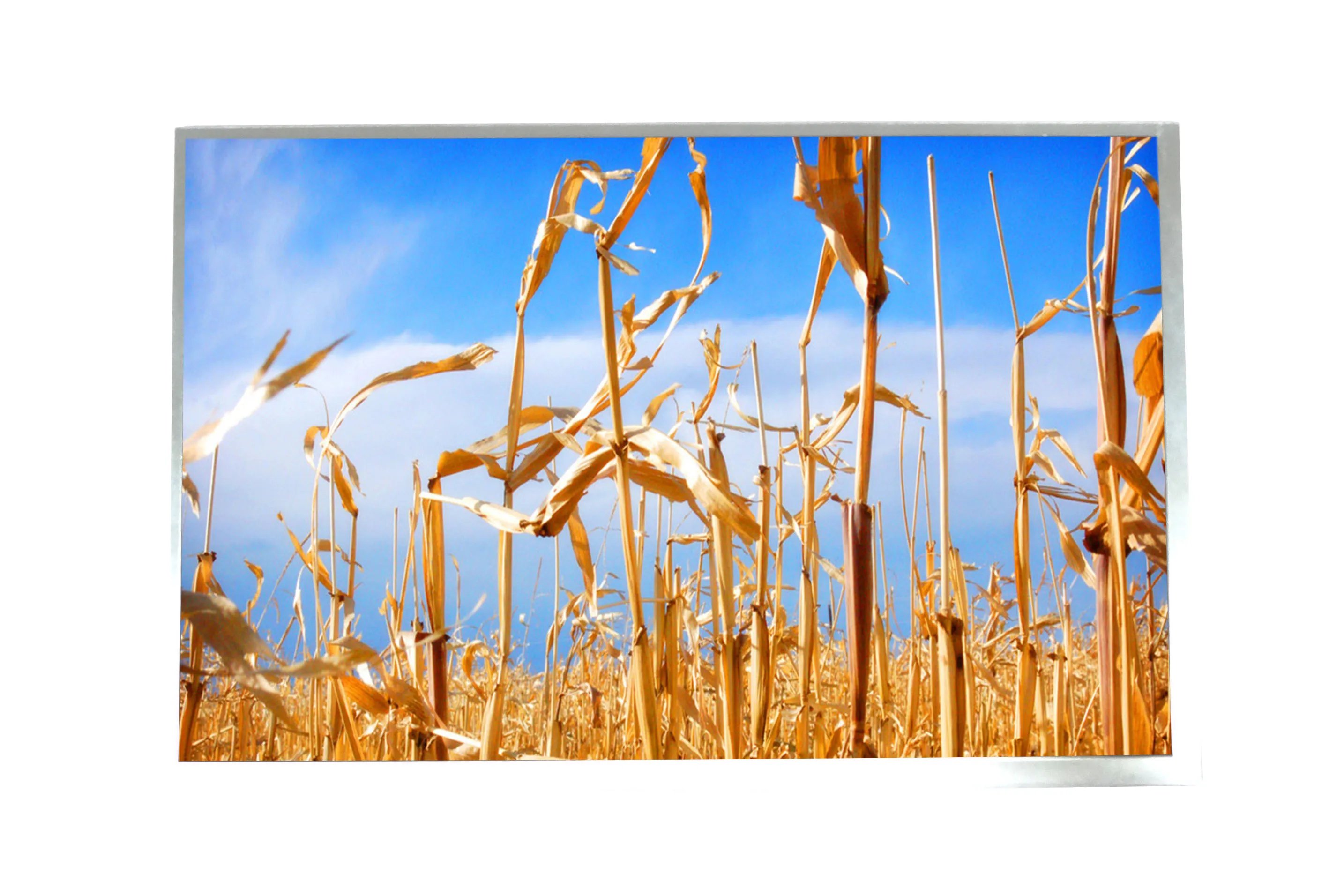

ATM1010L35A Product Page
Resources
Datasheet
Request a Quote
Total Qty Available: 49
| Product Specifics | |
|---|---|
| Overall Module Size | 10.1 |
| Resolution | 1280 x 800 |
| Aspect Type | Wide |
| Touch | None |
| Brightness (Nits) | 1000 |
| Contrast | 800 |
| Backlight | - |
| Viewing Angle | +85/-85 +85/-85 |
| Weight | |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | LVDS |
| Active Area | 216.9X135.6mm |
| Outline Dimension | 229.8X149.0X6.0mm |
| Viewing Direction | Free |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
