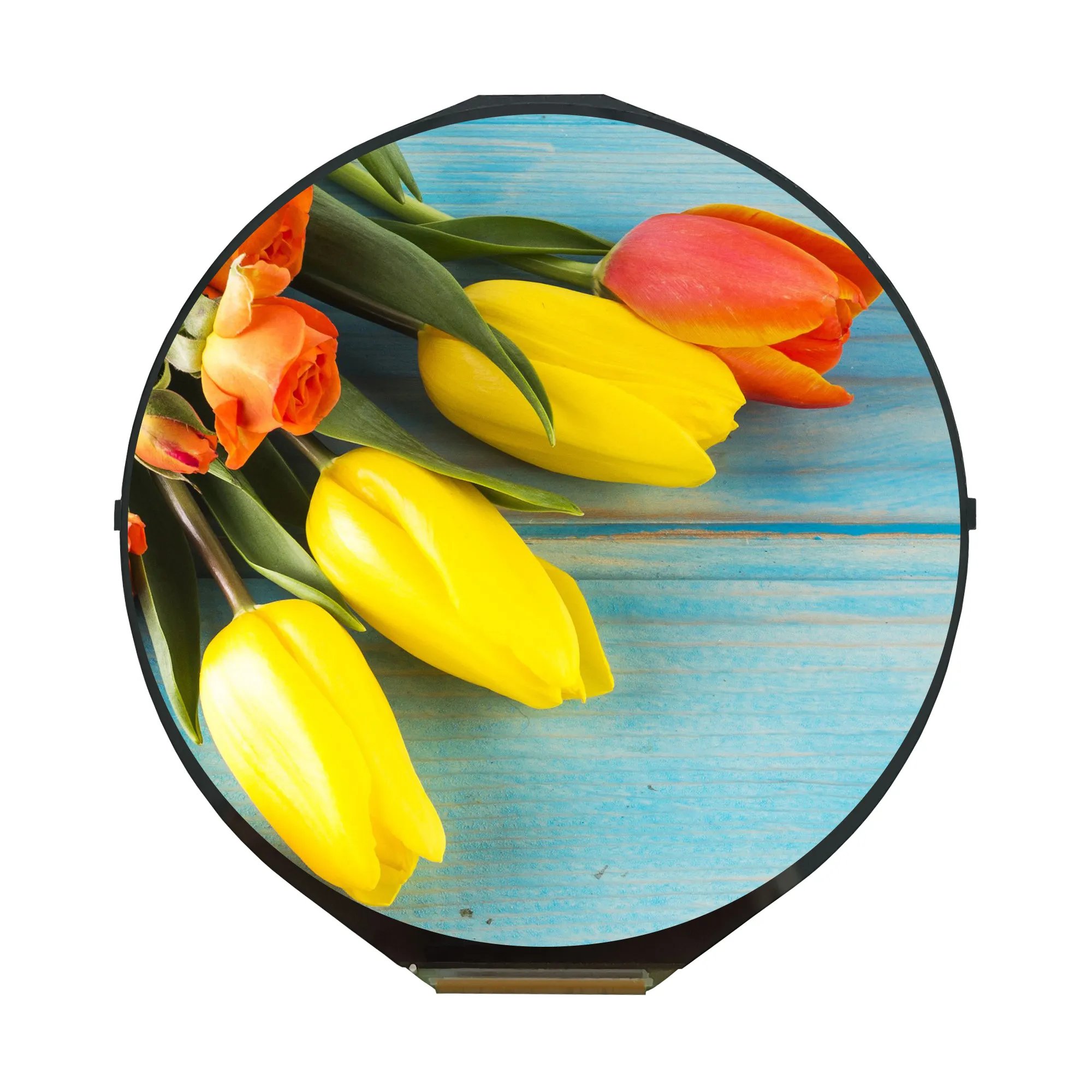

ATMD500M1 Product Page
Resources
Datasheet
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 5 |
| Resolution | 1080 x 1080 |
| Aspect Type | Round |
| Touch | None |
| Brightness (Nits) | 350 |
| Contrast | 1300 |
| Backlight | - |
| Viewing Angle | +80/-80 |
| Weight | 71.1 |
| Operation Temperature (℃) | -20~+60 |
| Storage Temperature (℃) | -30~+80 |
| Interface | 4 lane MIPI |
| Active Area | 132.208X127.008 mm |
| Outline Dimension | 132.208X136.531X1.98mm |
| Viewing Direction | Free |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
