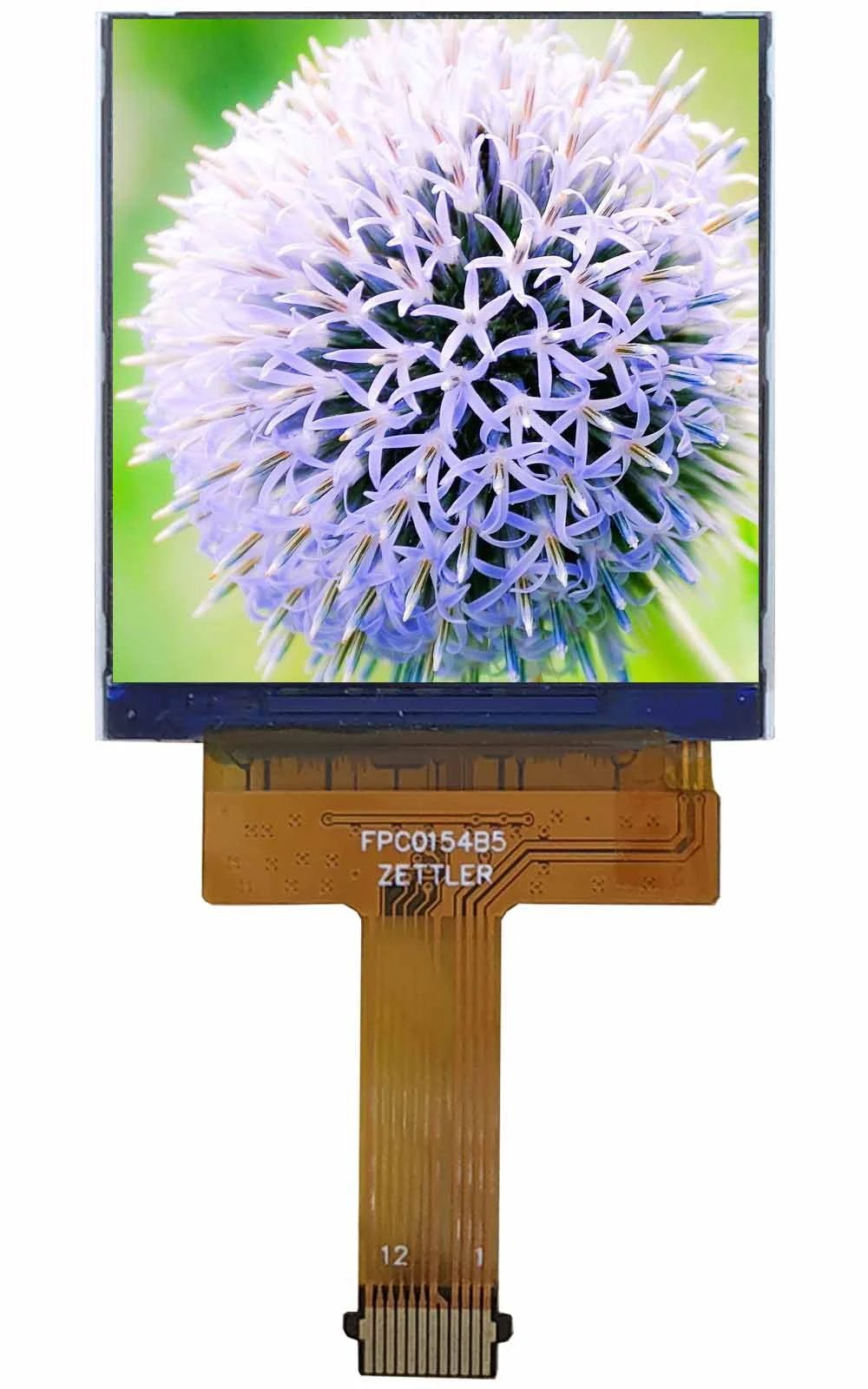

ATM0154B5 Digital TFT LCD Panels
Datasheet
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Overall Module Size | 1.54 |
| Resolution | 240XR.G.B.X240 |
| Brightness (Nits) | 500 |
| Contrast | 900 |
| Backlight | LED |
| Viewing Angle |
+80/-80 +80/-80 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | - |
| Interface | SPI |
| Active Area | 27.72X27.72 mm |
| Outline Dimension | 31.52X33.72 mm |
| Viewing Direction | IPS |
| Bonding Type | - |
| Pixel Configuration | - |
