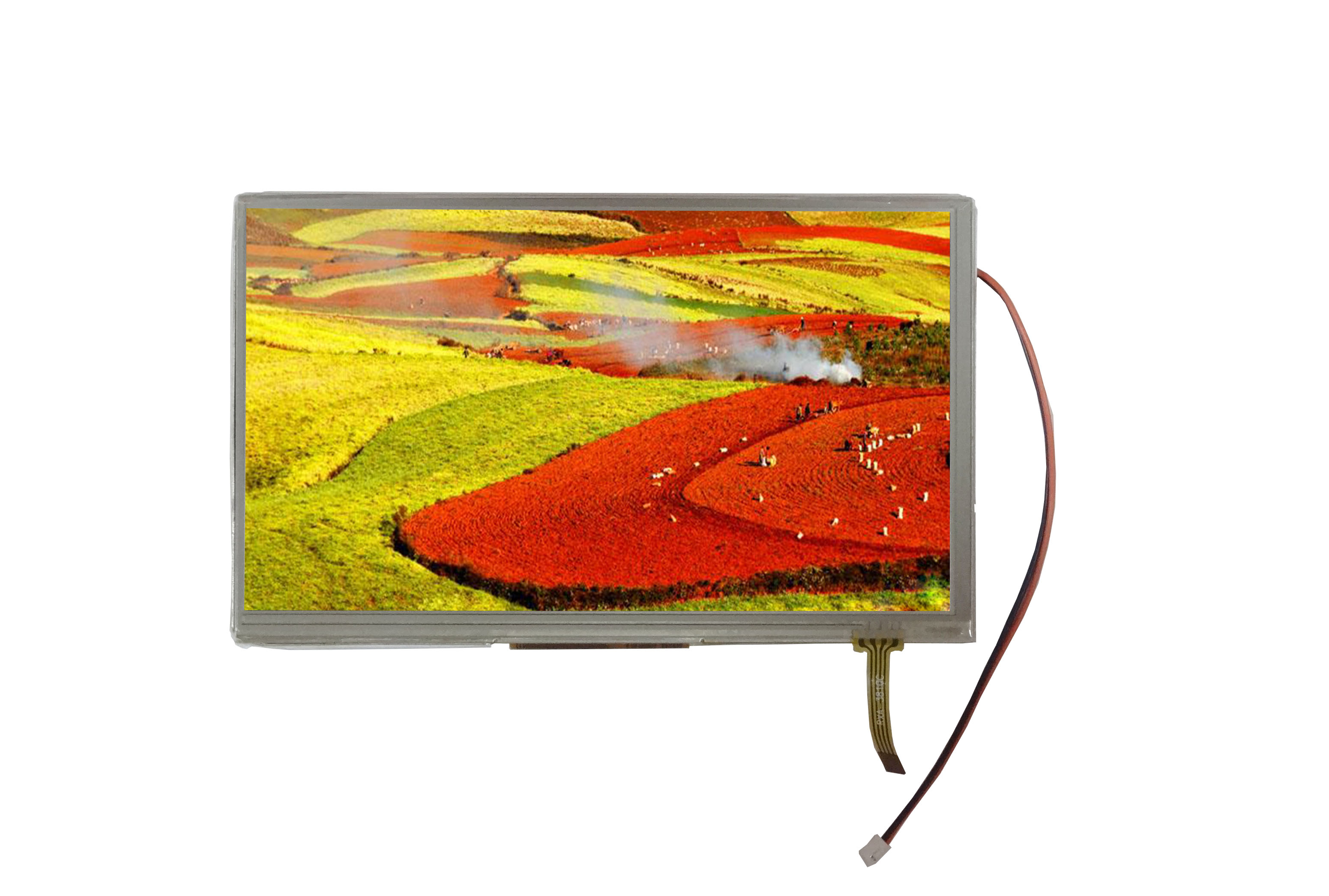

ATM0700L6L-T Digital TFT LCD Panels
Datasheet
3D CAD File (IGS)
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Overall Module Size | 7 |
| Resolution | 800 X 480 |
| Brightness (Nits) | 900 |
| Contrast | 500 |
| Backlight | LED |
| Viewing Angle |
+70/-70 +70/-50 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | LVDS |
| Active Area | 154.08X85.92 mm |
| Outline Dimension | 166.1X101.2X12.9 mm |
| Viewing Direction | 12 O'clock |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
