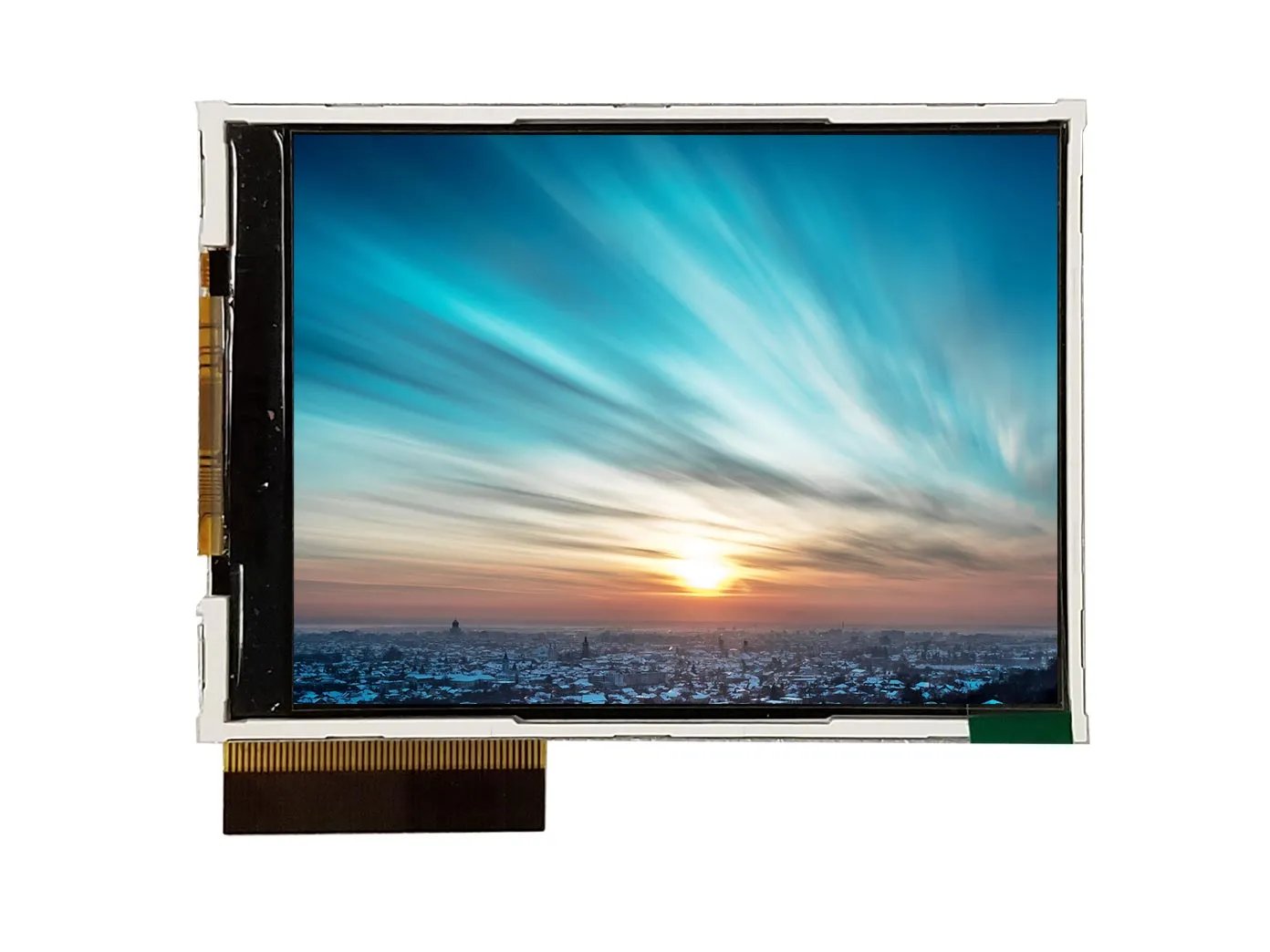

ATM0280B44B Product Page
Datasheet
View Part Drawing
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 2.8 |
| Resolution | 240 x 320 |
| Aspect Type | Wide |
| Touch | None |
| Brightness (Nits) | 240 |
| Contrast | 480 |
| Backlight | - |
| Viewing Angle | +45/-45 +50/-20 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | MPU |
| Active Area | 43.20X57.60 mm |
| Outline Dimension | 50.00X69.20X2.7 mm |
| Viewing Direction | 12 O'clock |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
