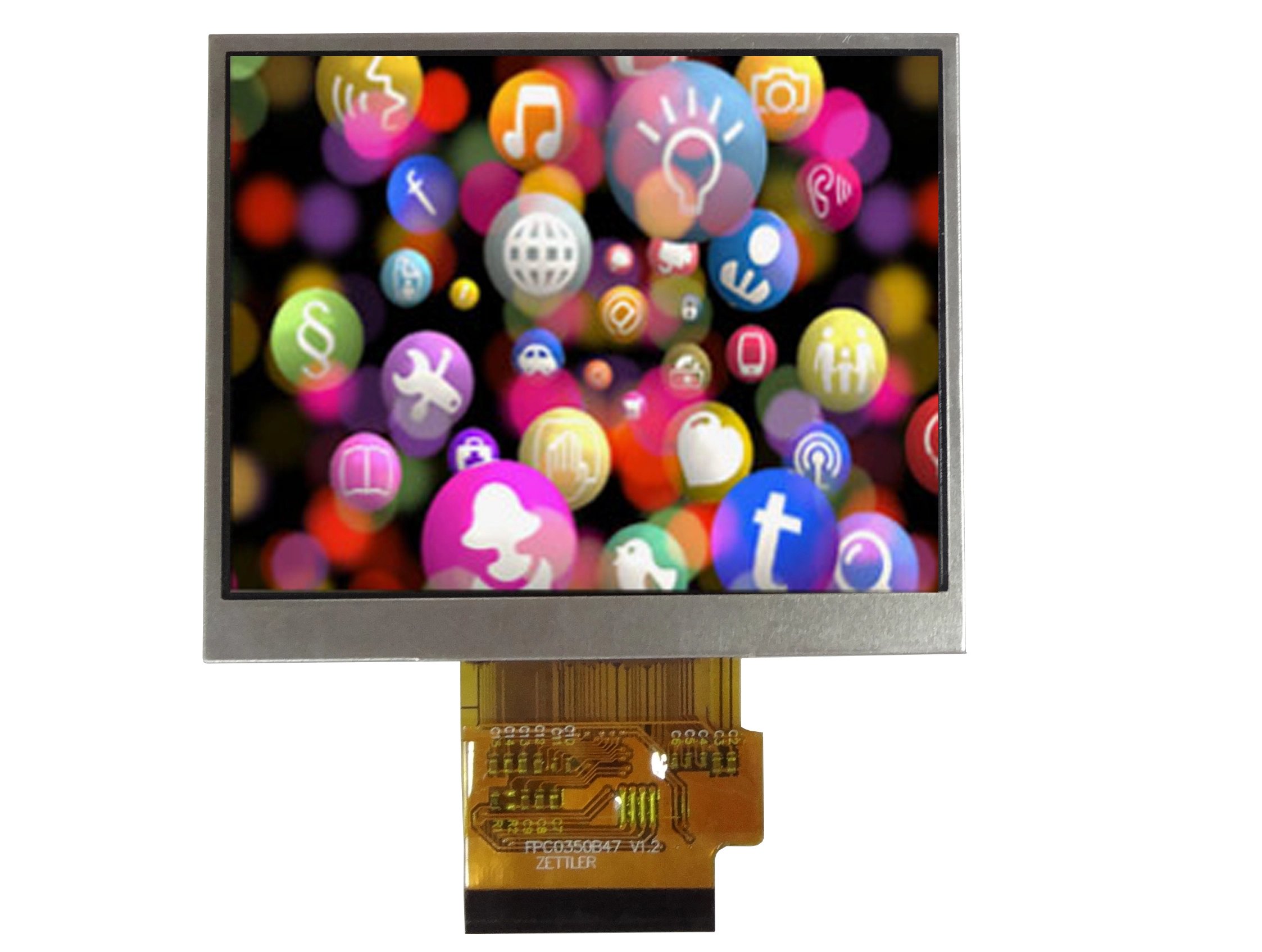

ATM0350B47B Digital TFT LCD Panels
Datasheet
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Overall Module Size | 3.5 |
| Resolution | 320XR.G.B.X240 |
| Brightness (Nits) | 400 |
| Contrast | 300 |
| Backlight | - |
| Viewing Angle |
+60/-60 +60/-30 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | - |
| Interface | MCU/RGB |
| Active Area | 70.08X52.56 mm |
| Outline Dimension | 76.9X63.9 mm |
| Viewing Direction | TN |
| Bonding Type | - |
| Pixel Configuration | - |
