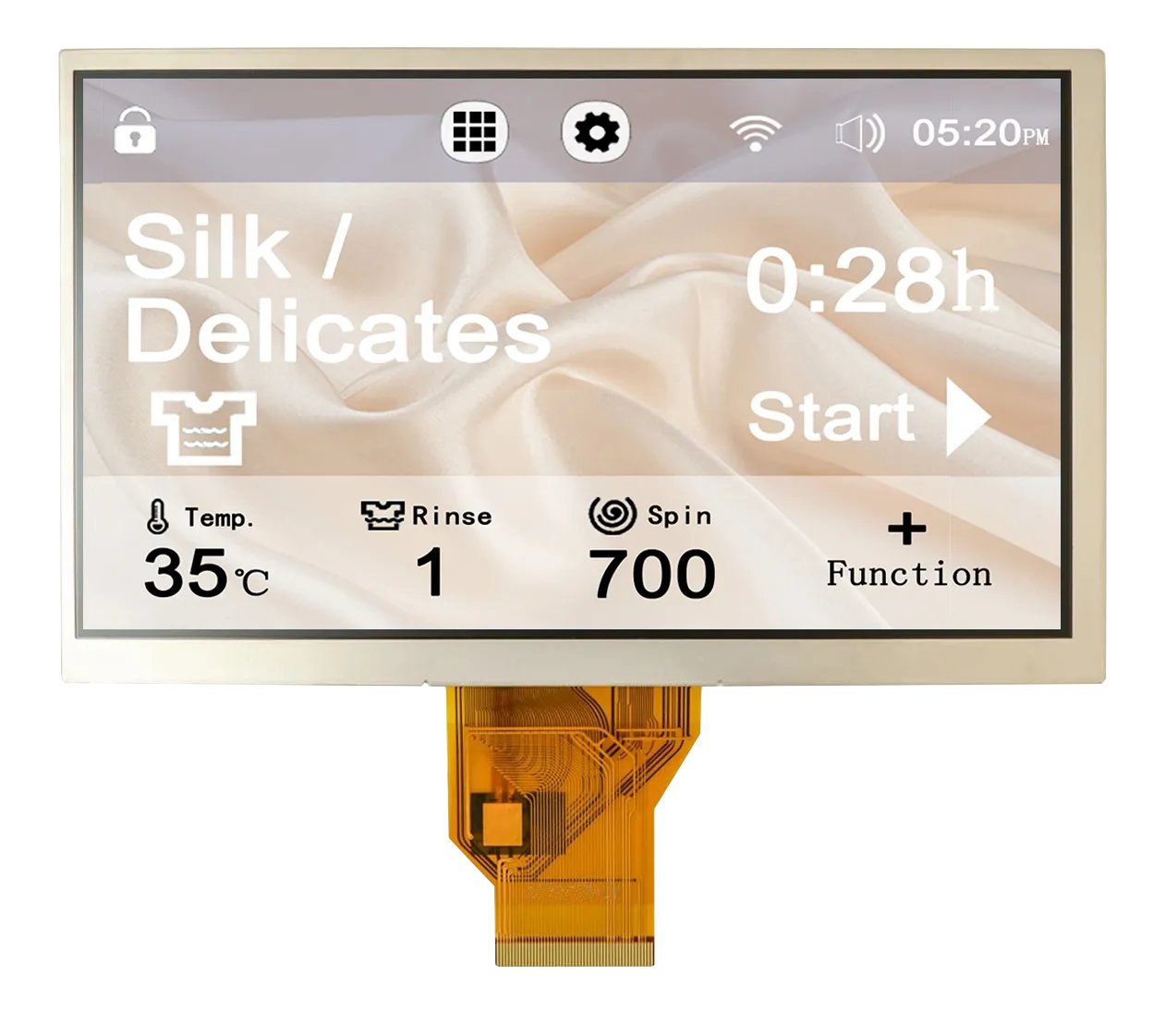

ATM0700L61K
Product Specifics
Overall Module Size7
Resolution1024 X 600
Brightness (Nits)1000
Contrast1000
BacklightLED
Viewing Angle+80/-80
+80/-80
Weight
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceSELB
Active Area154.21X85.92mm
Outline Dimension164.90X100.00X5.70mm
Viewing DirectionFree
Bonding TypeCOG
Pixel ConfigurationStripe
