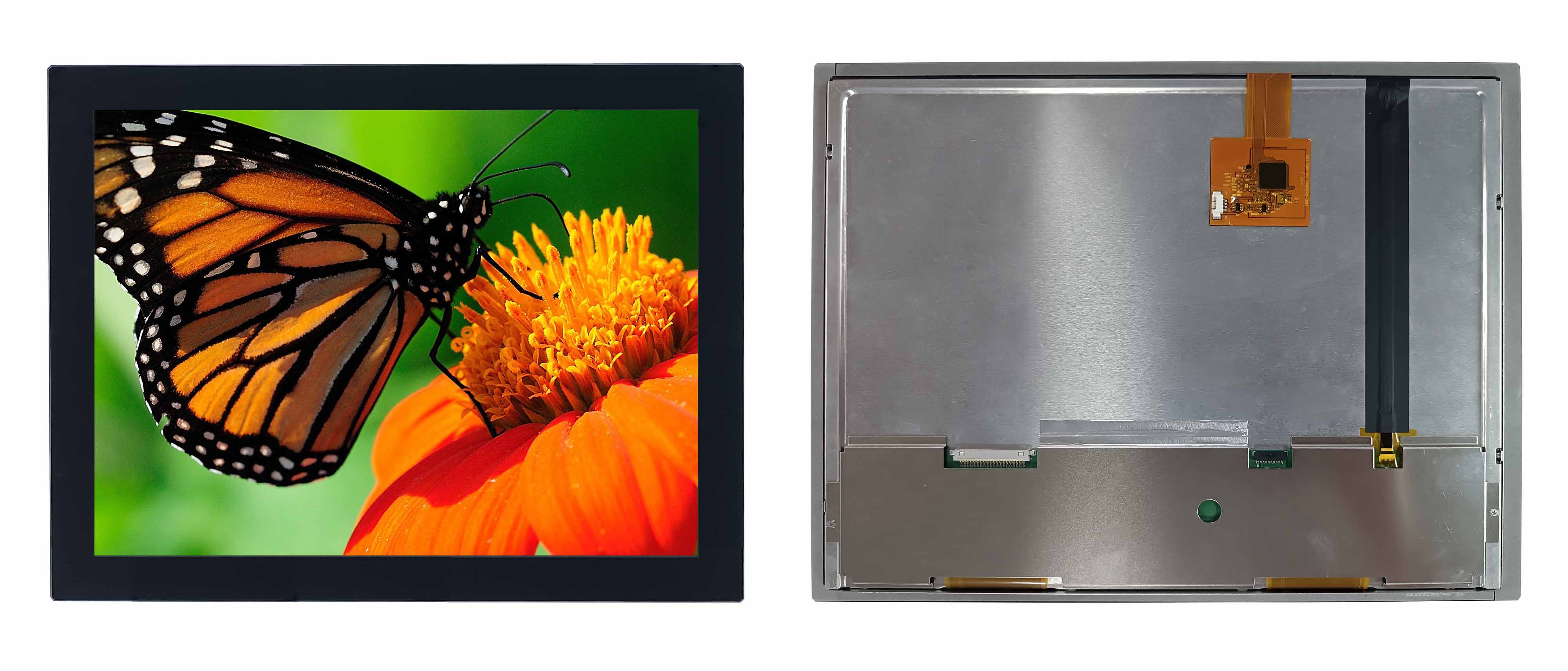

ATM1210L9-CT Digital TFT LCD Panels
Datasheet
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Overall Module Size | 12.1 |
| Resolution | 1024XR.G.B.X768 |
| Brightness (Nits) | 850 |
| Contrast | 800 |
| Backlight | - |
| Viewing Angle |
+85/-85 +85/-85 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | - |
| Interface | LVDS |
| Active Area | 245.76X184.32 mm |
| Outline Dimension | 281.8X220.8 mm |
| Viewing Direction | IPS |
| Bonding Type | - |
| Pixel Configuration | - |
