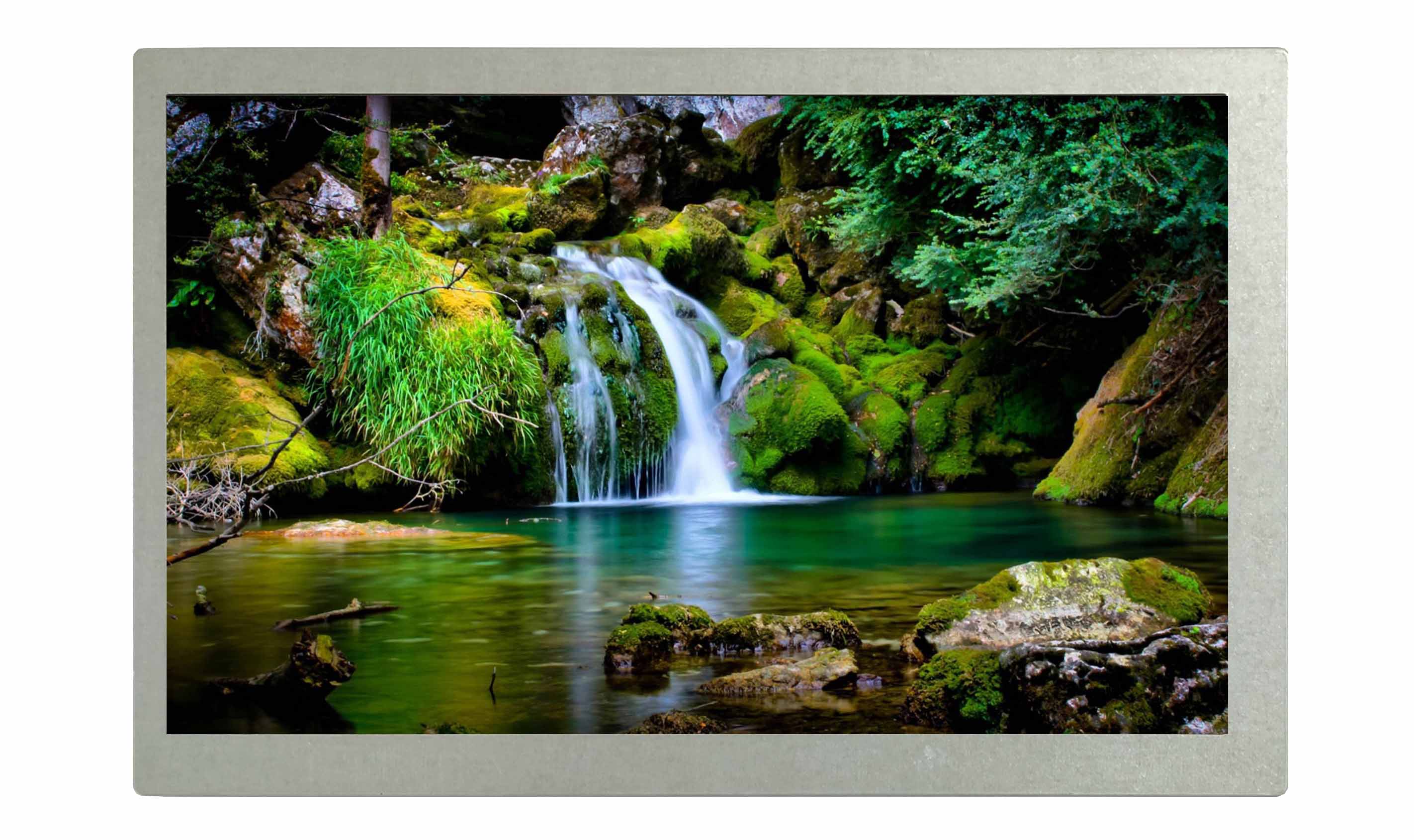

ATM0700L74 Digital TFT LCD Panels
Datasheet
Request a Quote
Check Distributor Stock
| Product Specifics | |
|---|---|
| Overall Module Size | 7 |
| Resolution | 800XR.G.B.X480 |
| Brightness (Nits) | 360 |
| Contrast | 900 |
| Backlight | - |
| Viewing Angle |
+85/-85 +85/-85 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | - |
| Interface | LVDS |
| Active Area | 152.4X91.44 mm |
| Outline Dimension | 170.0X110.0 mm |
| Viewing Direction | IPS |
| Bonding Type | - |
| Pixel Configuration | - |
