ATM0800D9-T Product Page

Resources

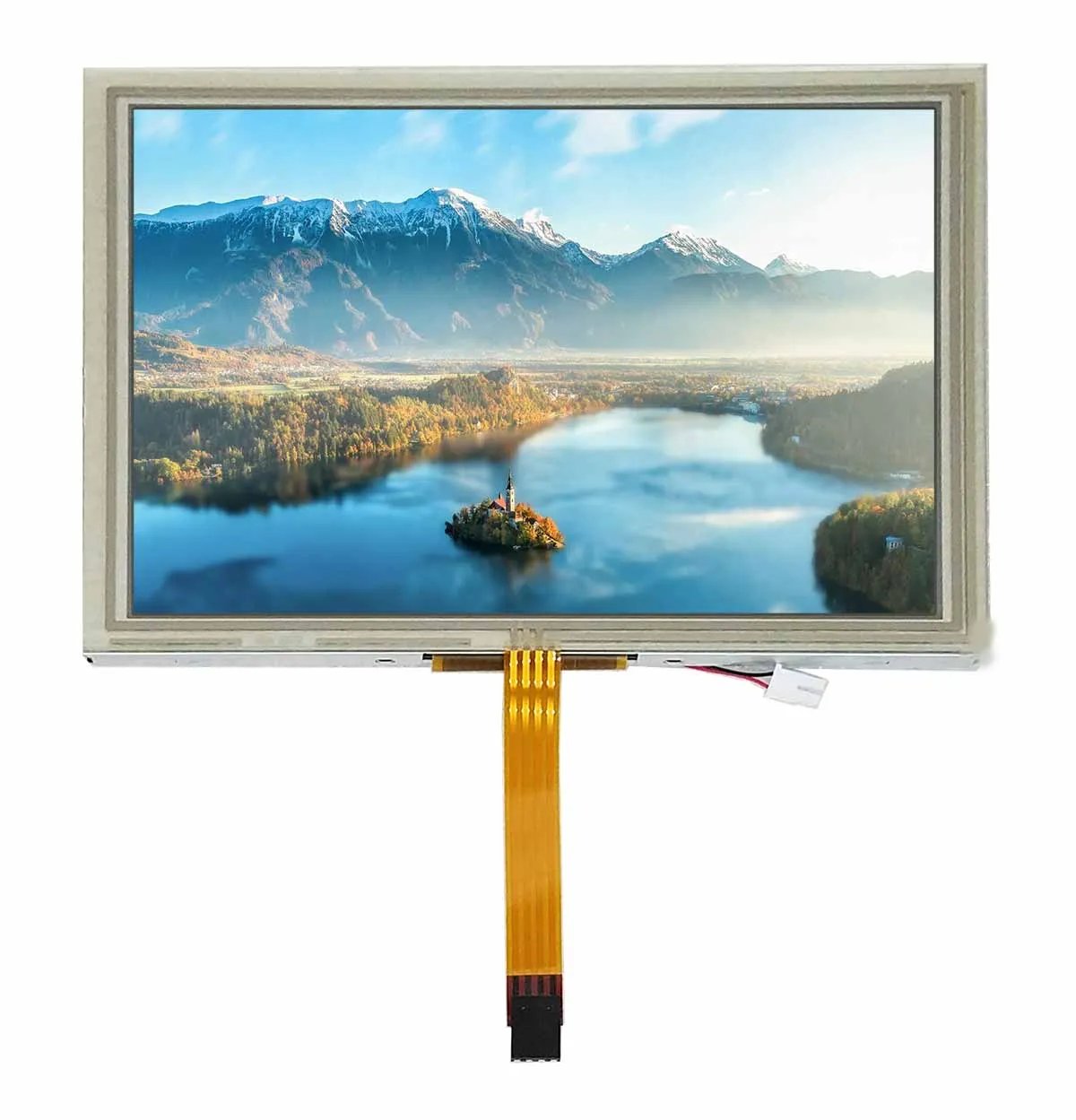

ATM0800D9-T
Product Specifics
Overall Module Size8
Resolution800 X 600
Brightness (Nits)280
Contrast500
BacklightLED
Viewing Angle+70/-70
+50/-70
Weight-
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceDigital RGB
Active Area162X121.5 mm
Outline Dimension183.0X141.0X8.0 mm
Viewing Direction12 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
