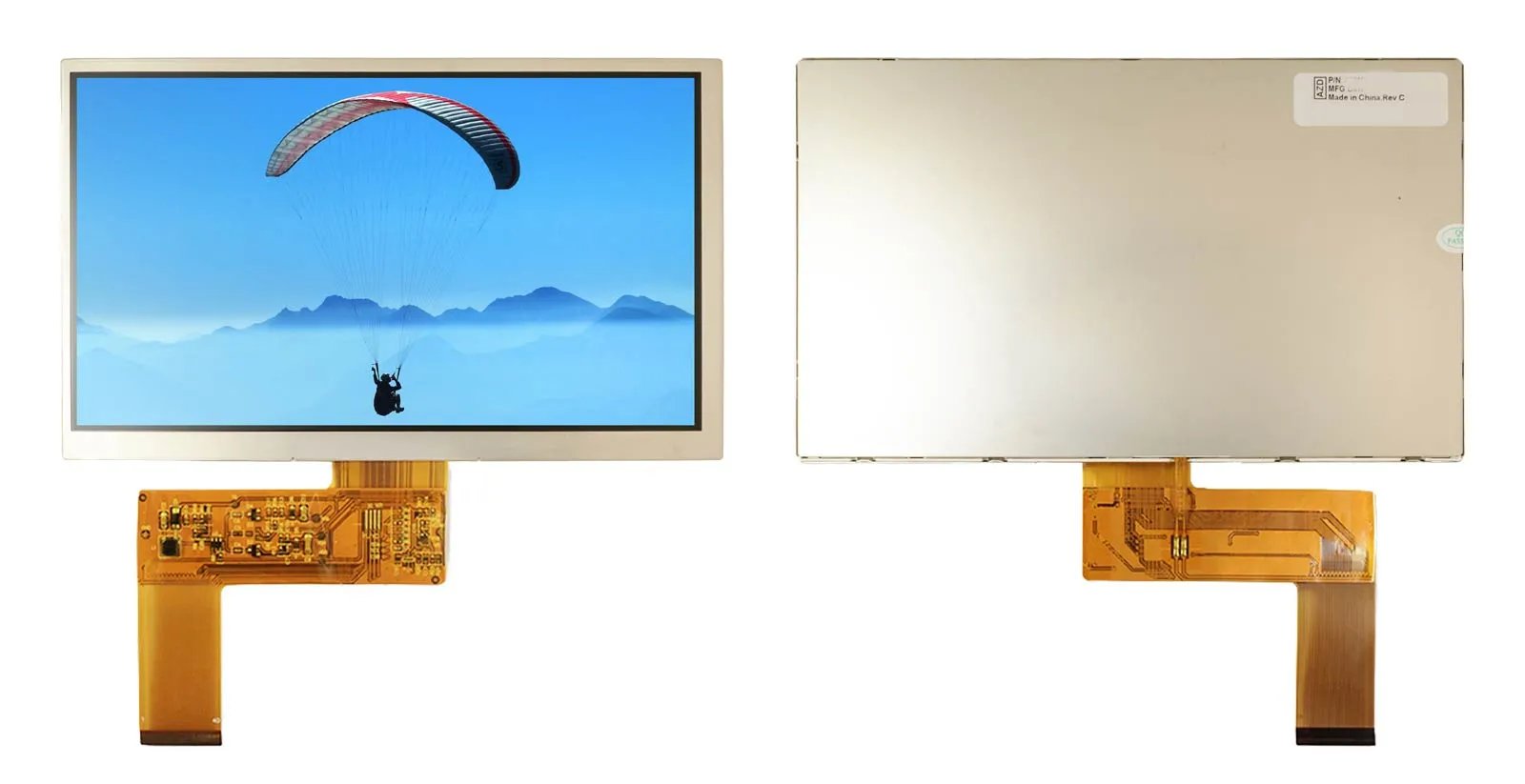

ATM0700D38B Product Page
Datasheet
3D CAD File (IGS)
View Part Drawing
Request a Quote
Total Qty Available: 50
| Product Specifics | |
|---|---|
| Overall Module Size | 7 |
| Resolution | 800 X 480 |
| Brightness (Nits) | 700 |
| Contrast | 500 |
| Backlight | LED |
| Viewing Angle | +70/-70 +60/-50 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | Digital RGB |
| Active Area | 153.6X86.64mm |
| Outline Dimension | 164.90X100.0X3.5 mm |
| Viewing Direction | 6 O'clock |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
