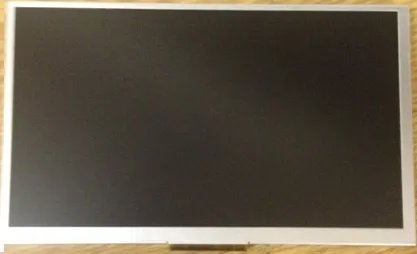

ATM0900D1 Product Page
Datasheet
3D CAD File (IGS)
View Part Drawing
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 9 |
| Resolution | 800 X 480 |
| Brightness (Nits) | 250 |
| Contrast | 500 |
| Backlight | LED |
| Viewing Angle | +70/-70 +50/-70 |
| Weight | 253 g |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | Digital RGB |
| Active Area | 198.0X111.696 |
| Outline Dimension | 211.1X126.5X 5.9 |
| Viewing Direction | 6 O'clock |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
