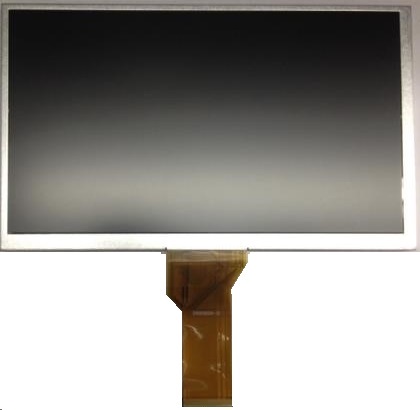

ATM0900D1 Digital TFT LCD Panel

ATM0900D1 Digital TFT LCD Panel Description

9" TFT LCD Display, 800 x 480, 250 nits, RGB, 50 pin

Module Specifications

Overall Module Size9"
Resolution800XR.G.B.X480
Brightness (Nits)250
Contrast500
Power Consumption0.360
Back LightLED
Viewing Angle+70/-70
+50/-70
Weight253 g
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceDigital RGB
Active Area198.0X111.696
Outline Dimension211.1X126.5X 5.9
Viewing Direction6 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
