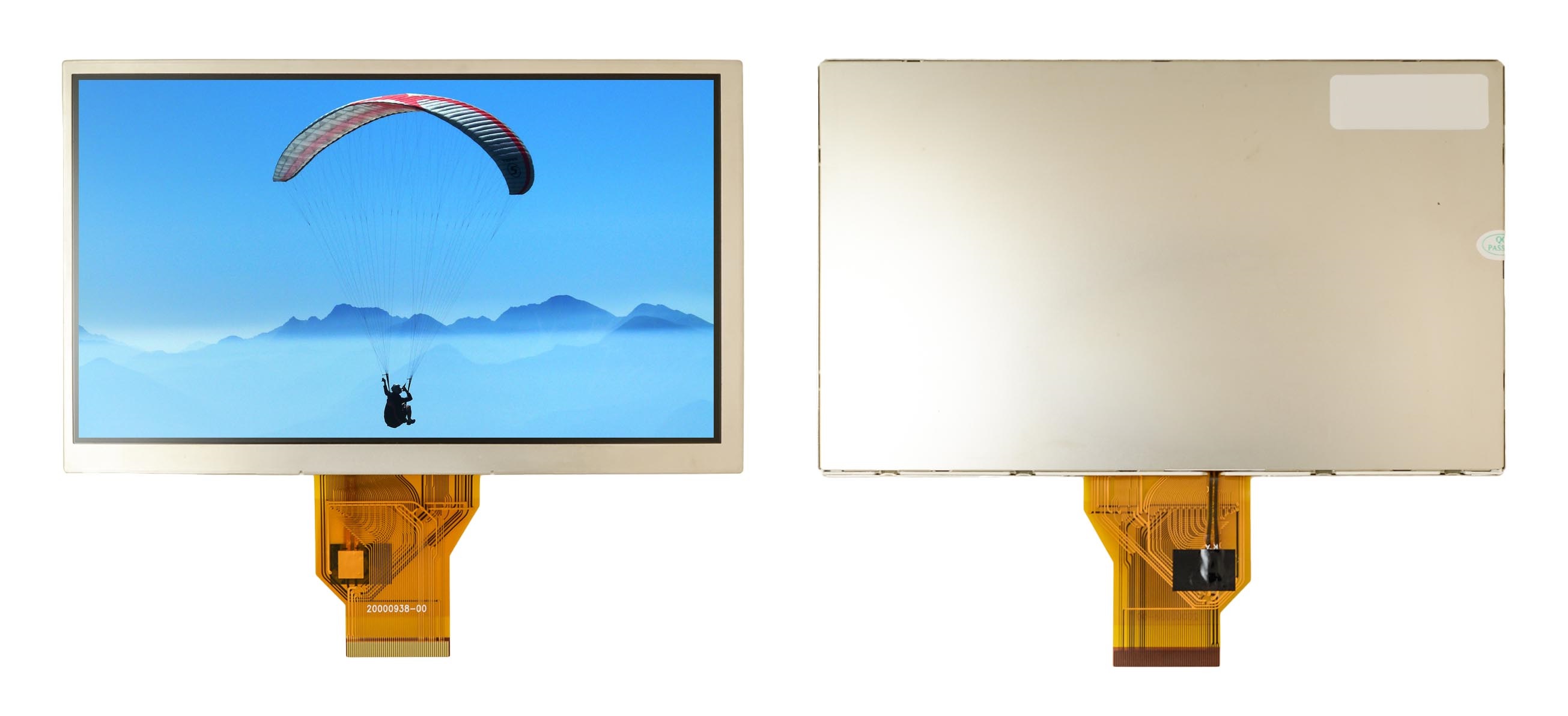

ATM0700L47 Digital TFT LCD Panel
Quicklinks:
ATM0700L47 Digital TFT LCD Panel Description
7" TFT LCD Display, 1024 x 600, 500 nits, LVDS, 40 pinModule Specifications
Overall Module Size | 7" |
Resolution | 1024XR.G.B.X600 |
Brightness (Nits) | 500 |
Contrast | 600 |
Power Consumption | 0.447 |
Back Light | LED |
Viewing Angle | +80/-80 +70/-60 |
Weight | 150 g |
Operation Temperature (℃) | -20~+70 |
Storage Temperature (℃) | -30~+80 |
Interface | LVDS |
Active Area | 154.21X85.92 mm |
Outline Dimension | 164.9X100.0X7.1 mm |
Viewing Direction | 6 O'clock |
Bonding Type | COG |
Pixel Configuration | Stripe |
