ATM0700D6J Digital TFT LCD Panel

Quicklinks:

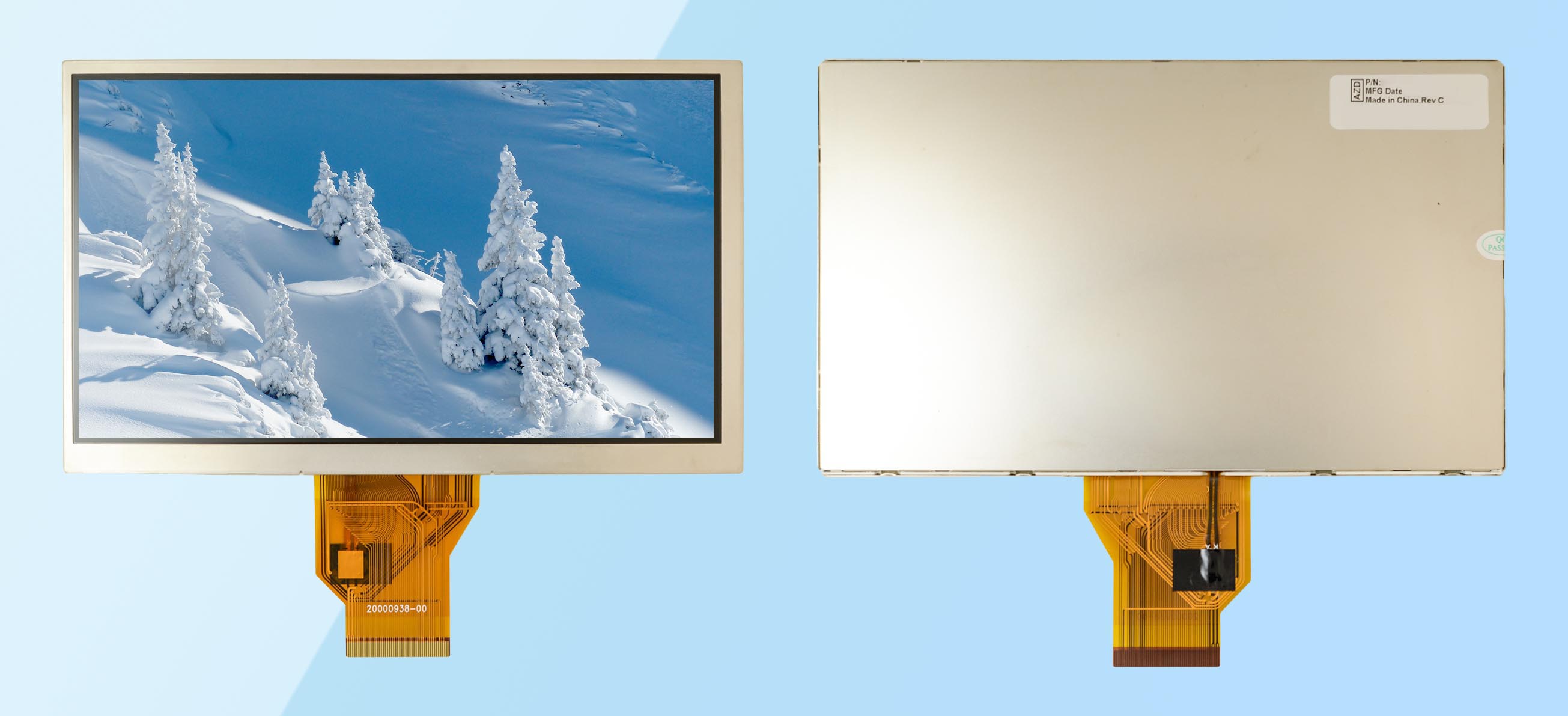

Product Picture:

ATM0700D6J Digital TFT LCD Panel Description

7" TFT LCD Display, 800 x 480, 1000 nits, RGB, 50 pin

Module Specifications

Overall Module Size7"
Resolution800XR.G.B.X480
Brightness (Nits)1000
Contrast500
Back LightLED
Viewing Angle+50/-70
+70/-50
Weight150 g
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceDigital RGB
Active Area154.08X85.92mm
Outline Dimension165.0X100.0X5.8mm
Viewing Direction12 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
