ATM0700D6J-T Digital TFT LCD Panel

Quicklinks:

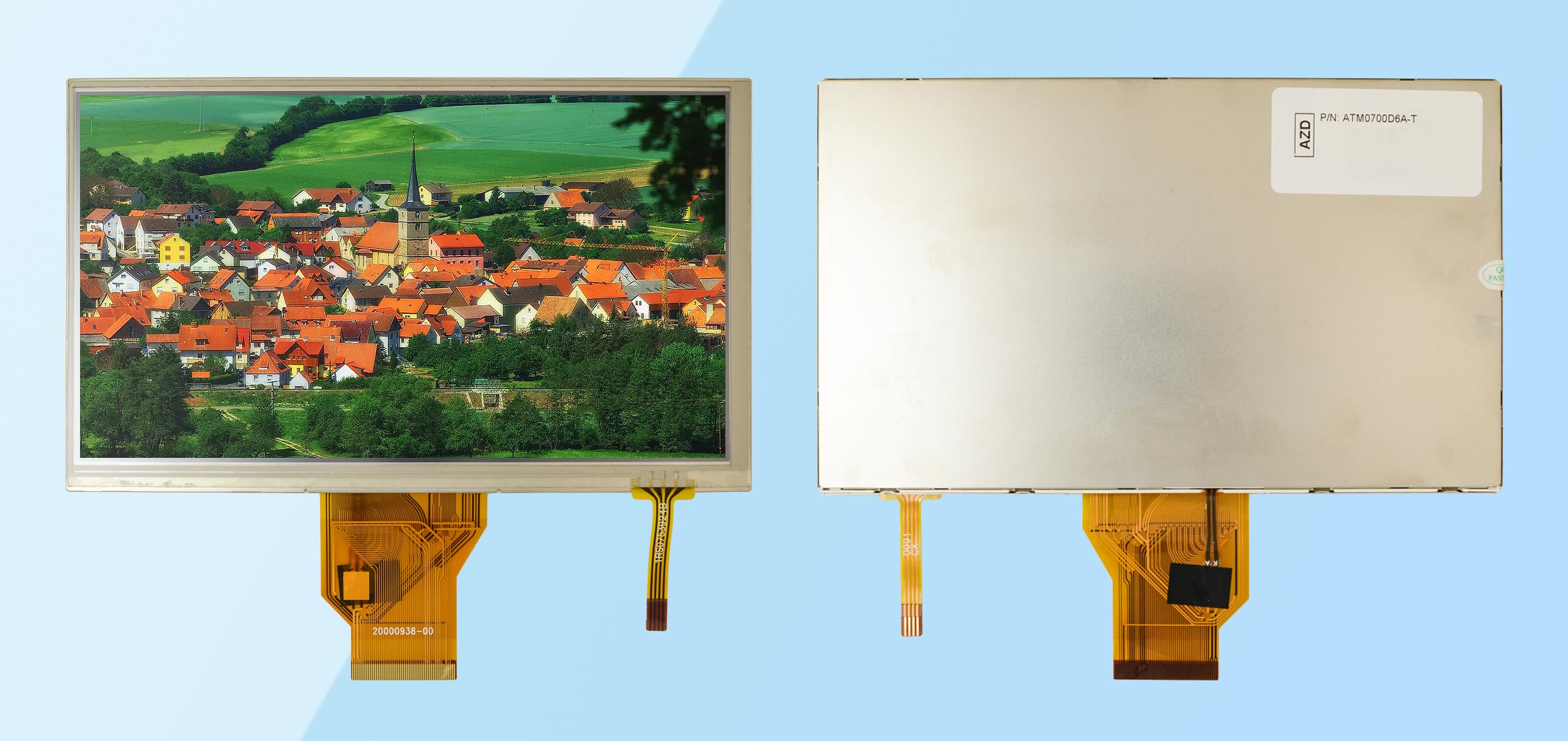

Product Picture:

ATM0700D6J-T Digital TFT LCD Panel Description

7" TFT LCD Display, 800 x 480, 800 nits, RGB, 50 pin, w/ Resistive TP

Module Specifications

Overall Module Size7"
Resolution800XR.G.B.X480
Brightness (Nits)800
Contrast500
Power Consumption1.41
Back LightLED
Viewing Angle+70/-70
+70/-50
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceDigital RGB
Active Area154.08X85.92 mm
Outline Dimension164.9X100.0X5.8 mm
Viewing Direction12 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
