ATM0700D38B Digital TFT LCD Panel

Quicklinks:

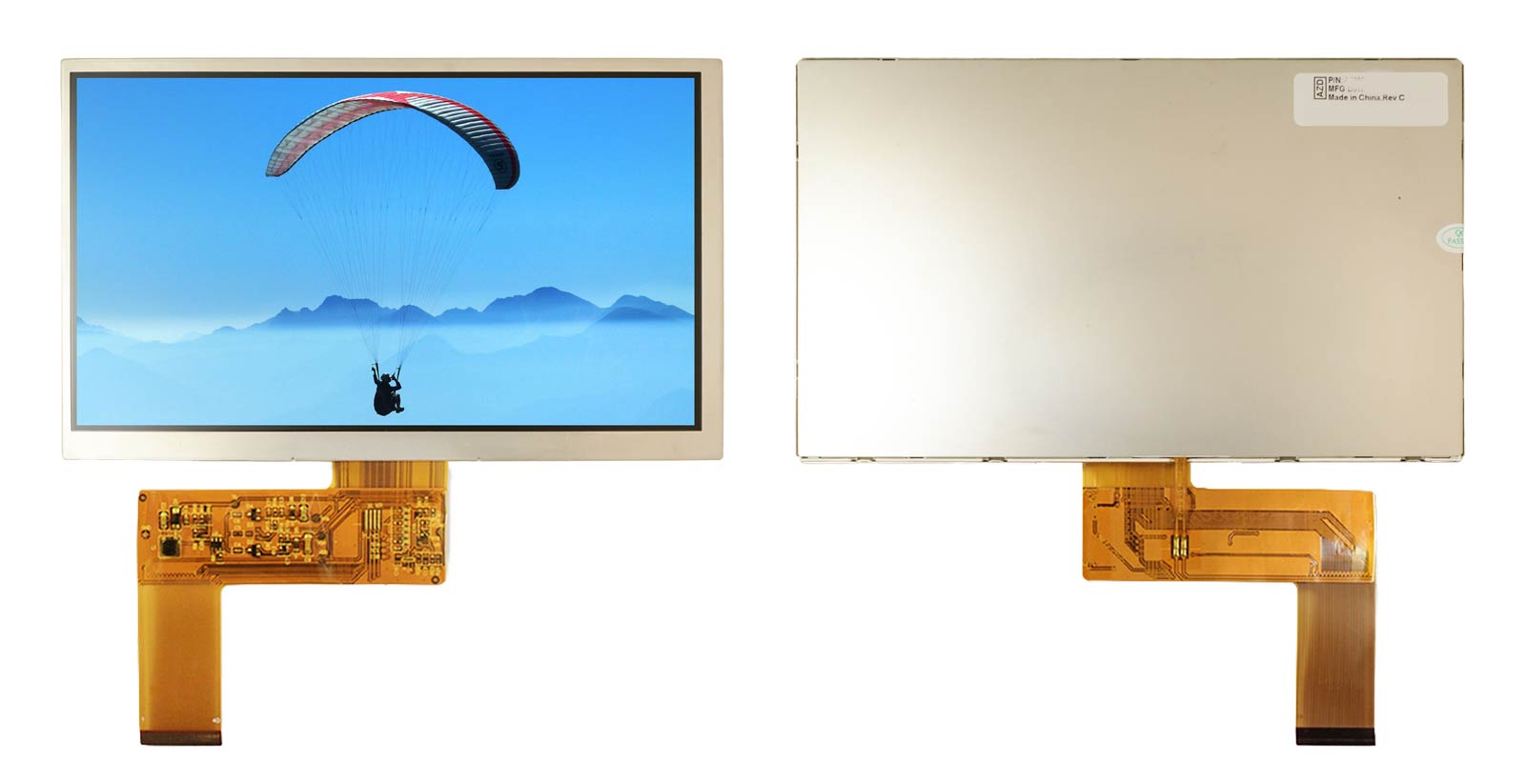

Product Picture:

ATM0700D38B Digital TFT LCD Panel Description

7" TFT LCD Display, 800 x 480, 700 nits, RGB, 40 pin

Module Specifications

Overall Module Size7"
Resolution800XR.G.B.X480
Brightness (Nits)700
Contrast500
Power Consumption2.2
Back LightLED
Viewing Angle+70/-70
+60/-50
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceDigital RGB
Active Area153.6X86.64mm
Outline Dimension164.90X100.0X3.5 mm
Viewing Direction6 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
